Fig. 7: CRM M stabilizes the roof of the active site on CrmG.

From: Structural studies reveal flexible roof of active site responsible for ω-transaminase CrmG overcoming by-product inhibition

Fig. 7: CRM M stabilizes the roof of the active site on CrmG.

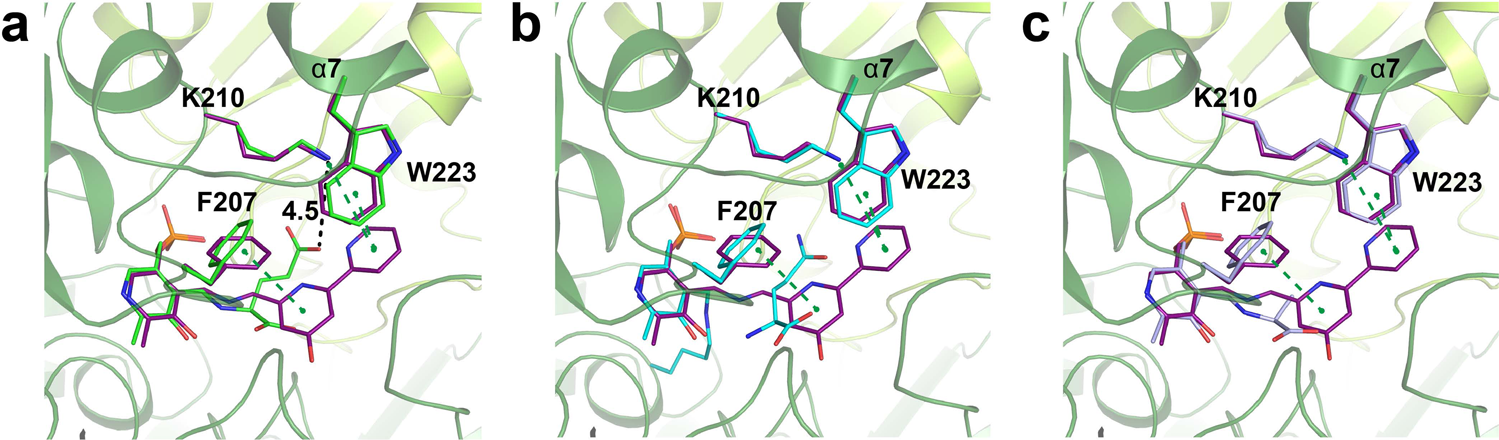

a Comparison of the structures of CrmG in complex with CRM M (purple) and CrmG in complex with l-Glu (green). b Comparison of the structures of CrmG in complex with CRM M (purple) and CrmG in complex with l-Gln (cyan). c Comparison of the structures of CrmG in complex with CRM M (purple) and CrmG in complex with l-Ala (light blue). Pi interactions are indicated with green dash line.
