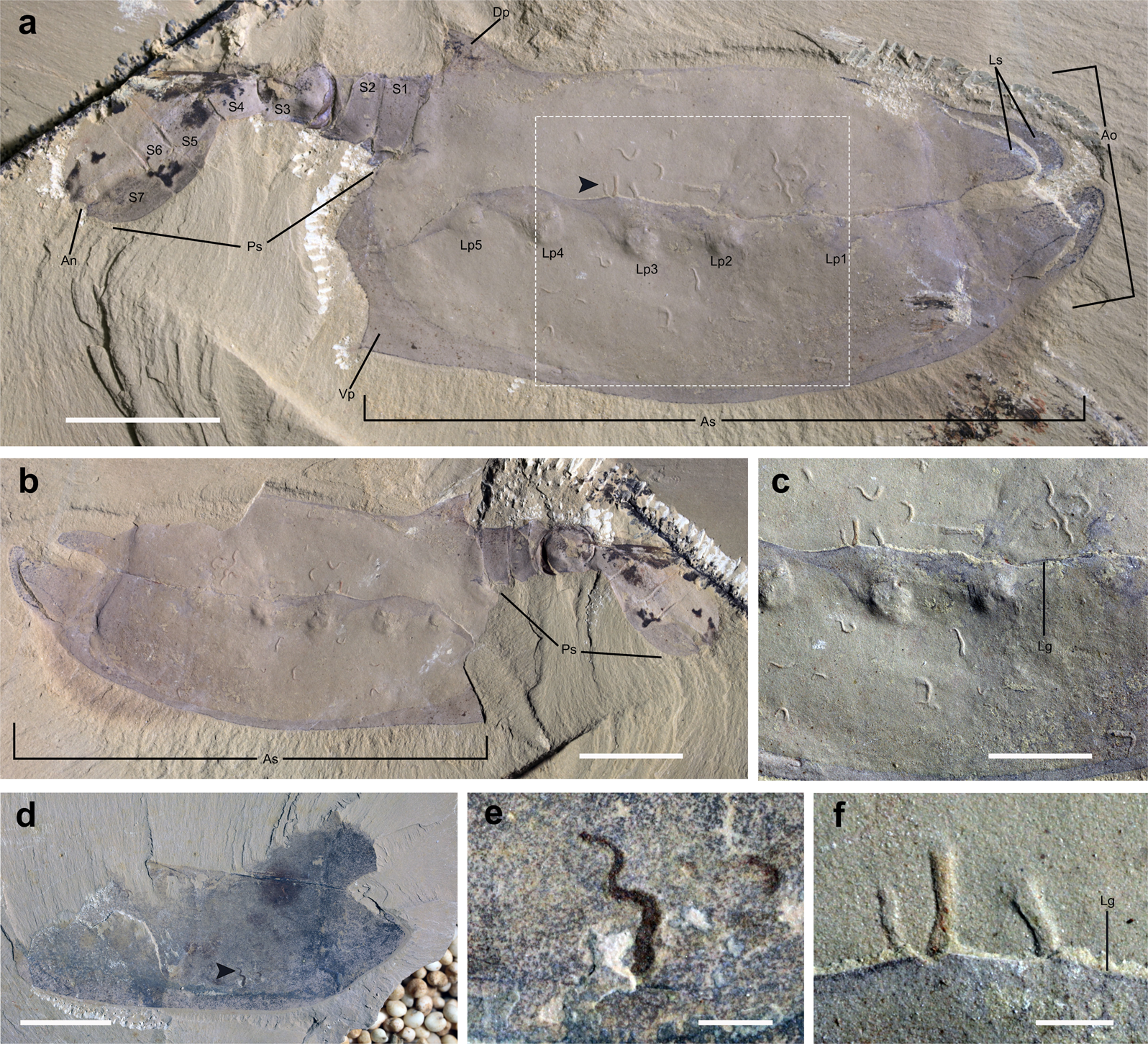

Fig. 2: Vetulicola cuneata infested by Vermilituus gregarius.
From: Symbiotic fouling of Vetulicola, an early Cambrian nektonic animal
a CJHMD 00031a, right view of the internal mould. Specimen infested with circa 20 V. gregarius. b CJHMD 00031b, left view of the internal mould. c Close-up of the area indicated in the box of image “a”, showing concentration of V. gregarius specimens in the anterior section. d, e CJHMD 00032b, interior surface of the right side (dorsal to top) of the anterior section, and close-up of a sinusoidal V. gregarius tube. f Enlargement of arrowed area in image “a”, showing concentration of three specimens along the central groove. An—anus, Ao—anterior opening, As—anterior section, Dp—posterodorsal projection, Lg—lateral groove, Lp—lateral pouch, Ls—lip-like structure, Ps—posterior section, S—segment, Vp—posteroventral projection (see ref. 2 for terminology). Scale bars: a, b, d 1 cm; c 5 mm; e, f 1 mm.
