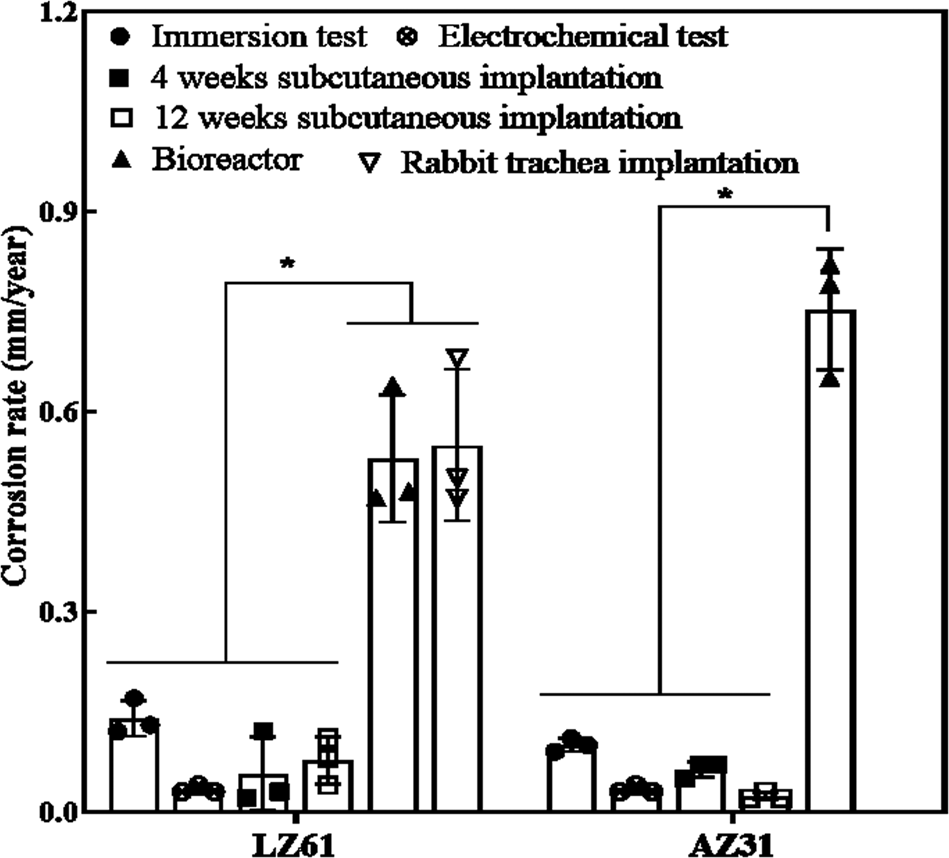

Fig. 7: A summary of corrosion rate of LZ61-KBMS and AZ31 alloy under different tests. | Communications Biology

Fig. 7: A summary of corrosion rate of LZ61-KBMS and AZ31 alloy under different tests.

From: In-vivo efficacy of biodegradable ultrahigh ductility Mg-Li-Zn alloy tracheal stents for pediatric airway obstruction

Fig. 7: A summary of corrosion rate of LZ61-KBMS and AZ31 alloy under different tests.

Immersion test: 5-week corrosion rates calculated based on the immersion test; Electrochemical test: corrosion rates calculated based on Tafel plot; 4-weeks subcutaneous implantation: corrosion rates calculated based on the weight loss after 4 weeks of implantation; 12-weeks subcutaneous implantation: corrosion rates calculated based on the weight loss after 12 weeks of implantation; Bioreactor: corrosion rate calculated based on the stent volume loss after 5 weeks of immersion in bioreactor; Rabbit trachea implantation: corrosion rate calculated based on the stent volume loss after 4-weeks implantation in rabbit trachea. *denotes a significant difference between alloy groups (p < 0.05, n = 3). Corrosion rates calculated from bioreactor and rabbit trachea implantation are from the current study, the rest are derived from our previous published study31.

Back to article page
