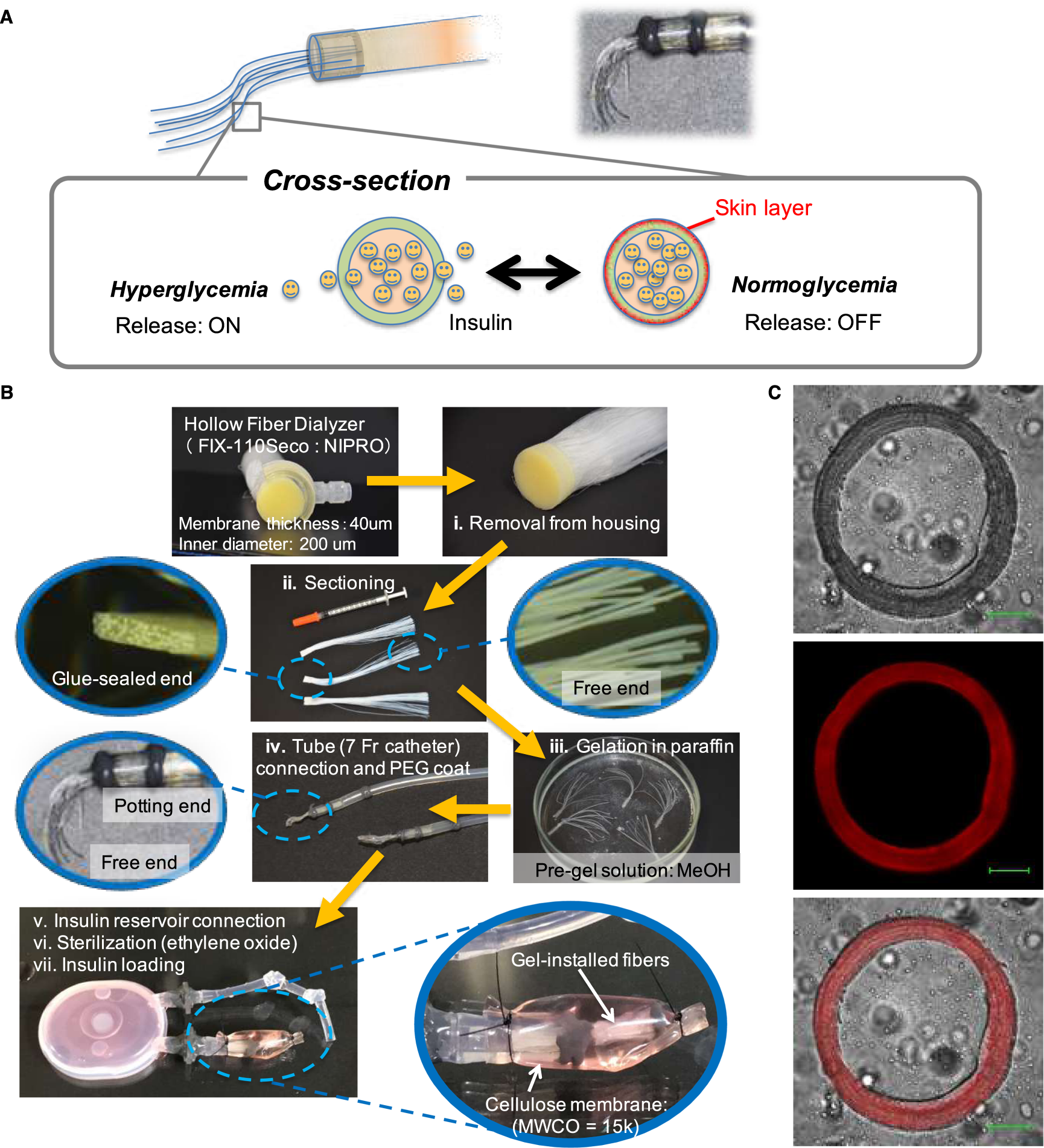

Fig. 3: Hemodialysis fiber-combined device.

a Schematic illustration of the skin-layer-driven working principle. b Summary of fabrication procedure. (i) A commercial hollow fiber dialyzer was first removed from the housing and disassembled into a bundle consisting of ca. 25 fibers. (ii) The free-end of the bundle was cut in the length 15 mm. After washing and drying, gelation was carried out by first immersing the bundle in a pre-gel methanol solution dissolving all monomers and initiator at room temperature, which was then quickly transferred to a liquid paraffin bath heated at 50 °C for overnight reaction (iii). After the reaction, the bundle was cleaned and dried. (iv) The bundle was further coated with a thin layer of poly(ethyleneglycol). (v) The dried bundle was then connected to a silicone-made insulin reservoir by using polypropylene-made tube connectors, followed by waterproofing treatment by epoxy resin. A 4 French silicone catheter was connected to the other arm of the reservoir. (vi) The device was then sterilized by an ethylene oxide gas sterilizer. (vii) Finally, the reservoir was filled with recombinant human insulin, and the gel-installed region was covered with a piece of cellulose dialysis membrane which was loosely tied with silk suture. c Microscopic images of a 40-μm-thick gel-installed fiber section. Top: transmittance image, middle: fluorescence image of Rhodamine-conjugated gel, bottom: superposition of the top and the middle. Scale bar: 50 μm.
