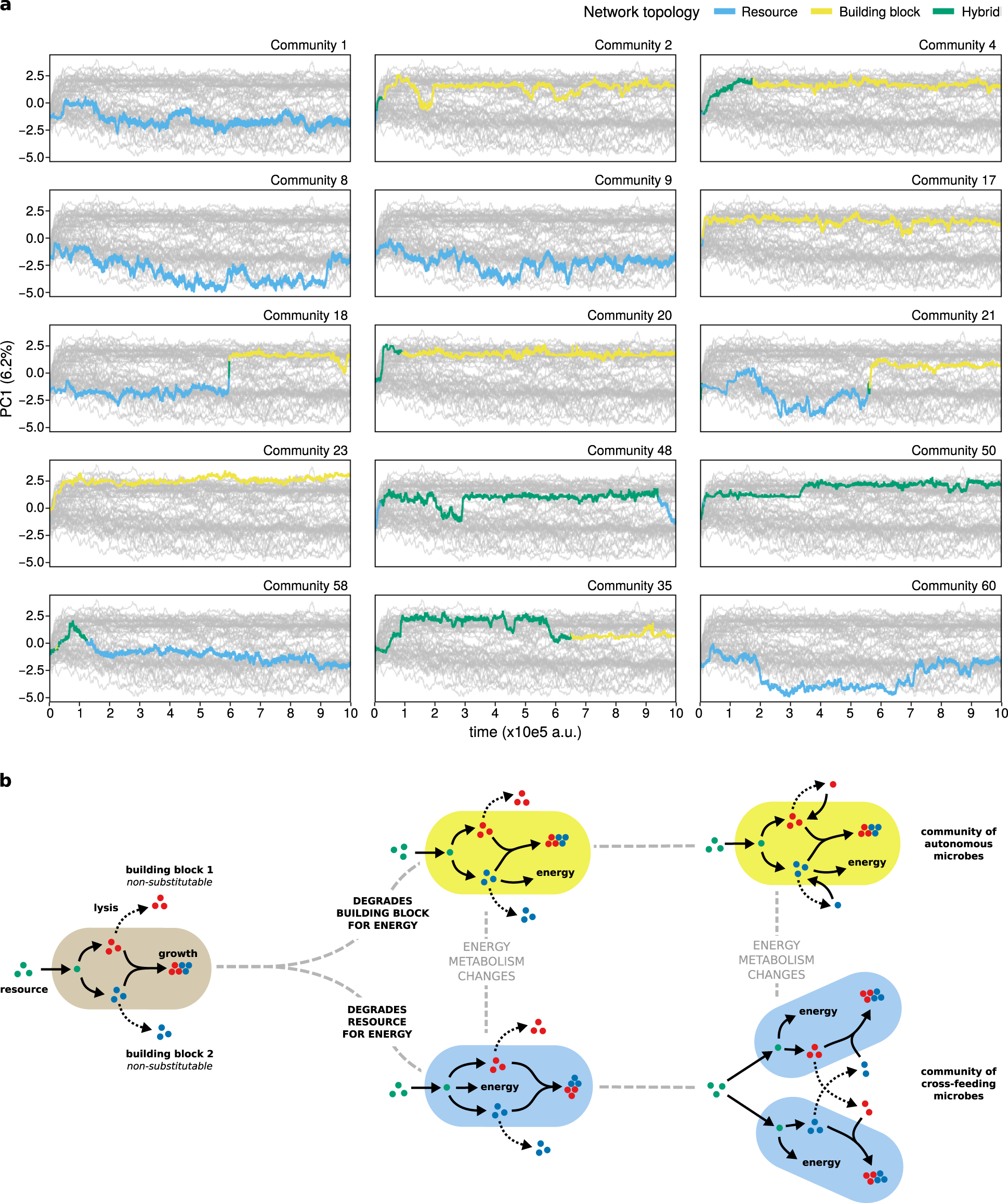

Fig. 6: Prior metabolic adaptations constrain future ecological roles.

a Evolutionary trajectories of example communities (first component from PCA in Fig. 5 v.s. time) towards cross-feeding (negative y-value) or autonomous (positive y-value) strategy, coloured for topology of the metabolic network. Grey lines indicate trajectories of all other communities. Changes in dominant network topology cause a switch in community strategy. b Cartoon of evolutionary trajectories. Earlier metabolic adaptations that fix in the initial population dictate final eco-evolutionary attractor, but are an evolutionary contingency. However, prediction is limited because the duration of each depicted stage is unpredictable, and cases where mutants with an alternate network topology invade and replace the population (dashed arrow in b, population 18 and 21 in a) are possible.
