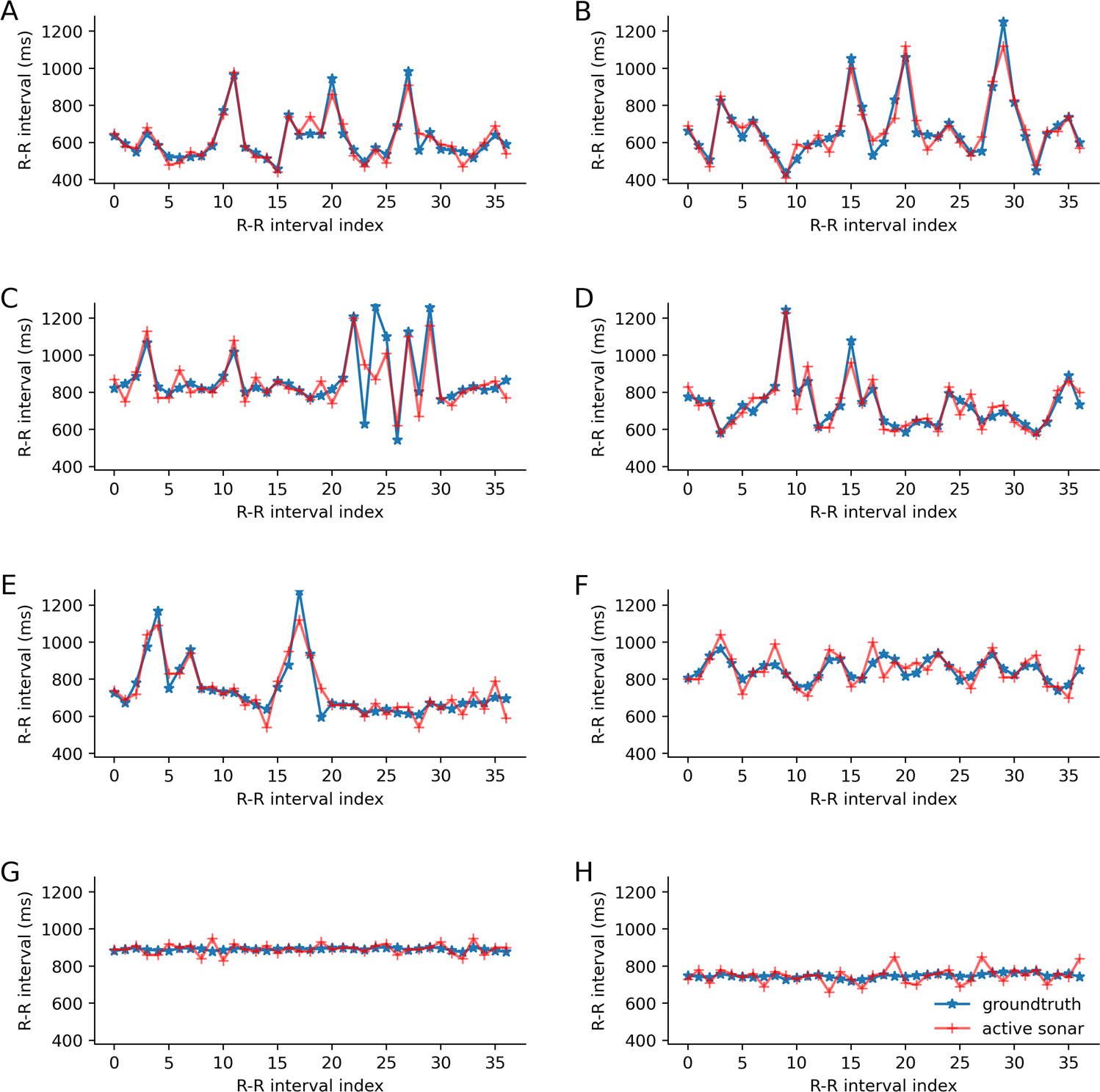

Fig. 6: Example plots showing the time series of R–R intervals for cardiac patients, where red and blue lines represent our active sonar system and ground truth, respectively.
From: Using smart speakers to contactlessly monitor heart rhythms
A–E five atrial fibrillation patients, F a patient with respiratory arrhythmia, and G, H two patients with sinus rhythm without arrhythmia.
