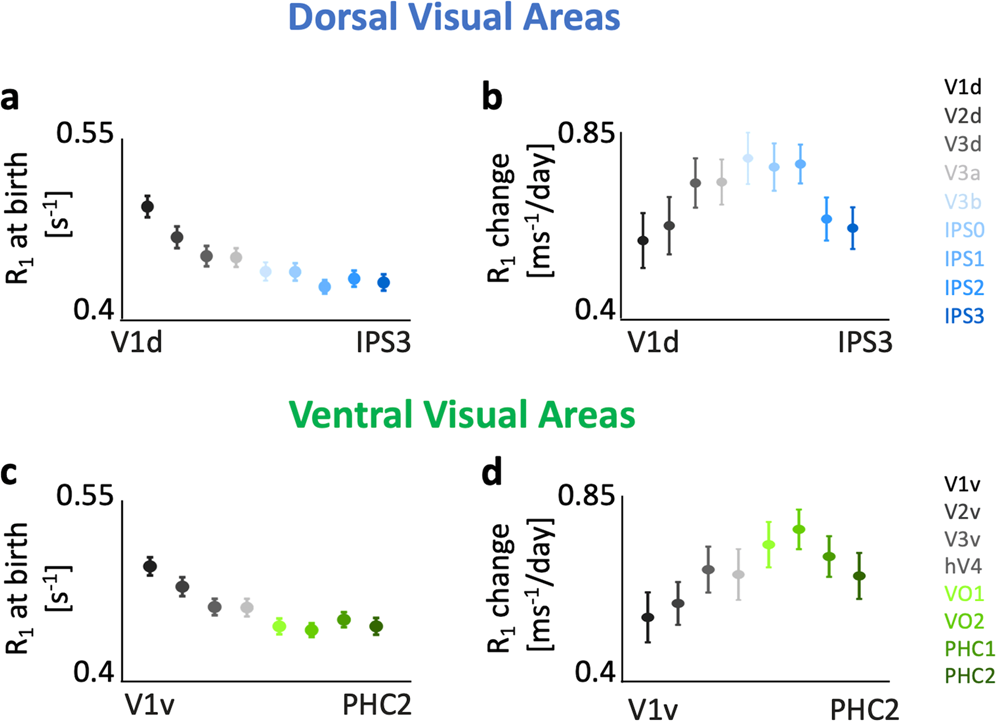

Fig. 4: Both R1 at birth and change in R1 per day vary systematically across visual processing streams.
From: Infants’ cortex undergoes microstructural growth coupled with myelination during development
Linear mixed modeling (LMM) of R1 as a function of age (Supplementary Fig. 8) provide estimates of R1 at birth (LMM intercept) and rate of R1 development (LMM slope) for each visual area in the dorsal (a, b) and ventral (c, d) visual streams. Error bars: standard error on estimates of intercepts and slopes. Data shown are from right hemisphere; Left hemisphere data are shown in Supplementary Fig. 8.
