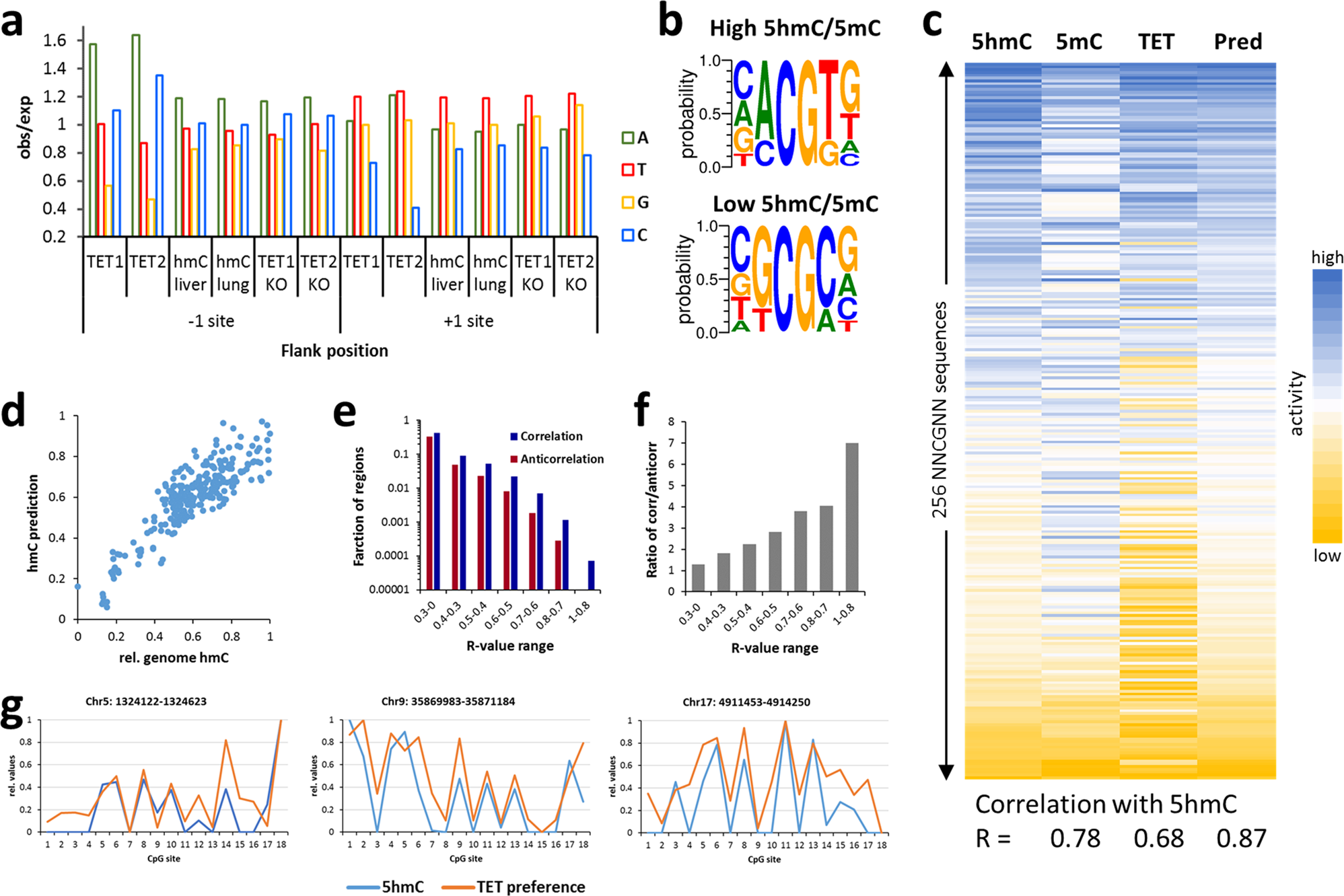

Fig. 5: Correlation of genomic DNA modification patterns with flanking sequence preferences of TET1 and TET2.
