Fig. 2: Limit of detection for endonuclease-actuated nucleic acid detection.
From: Improving the specificity of nucleic acid detection with endonuclease-actuated degradation

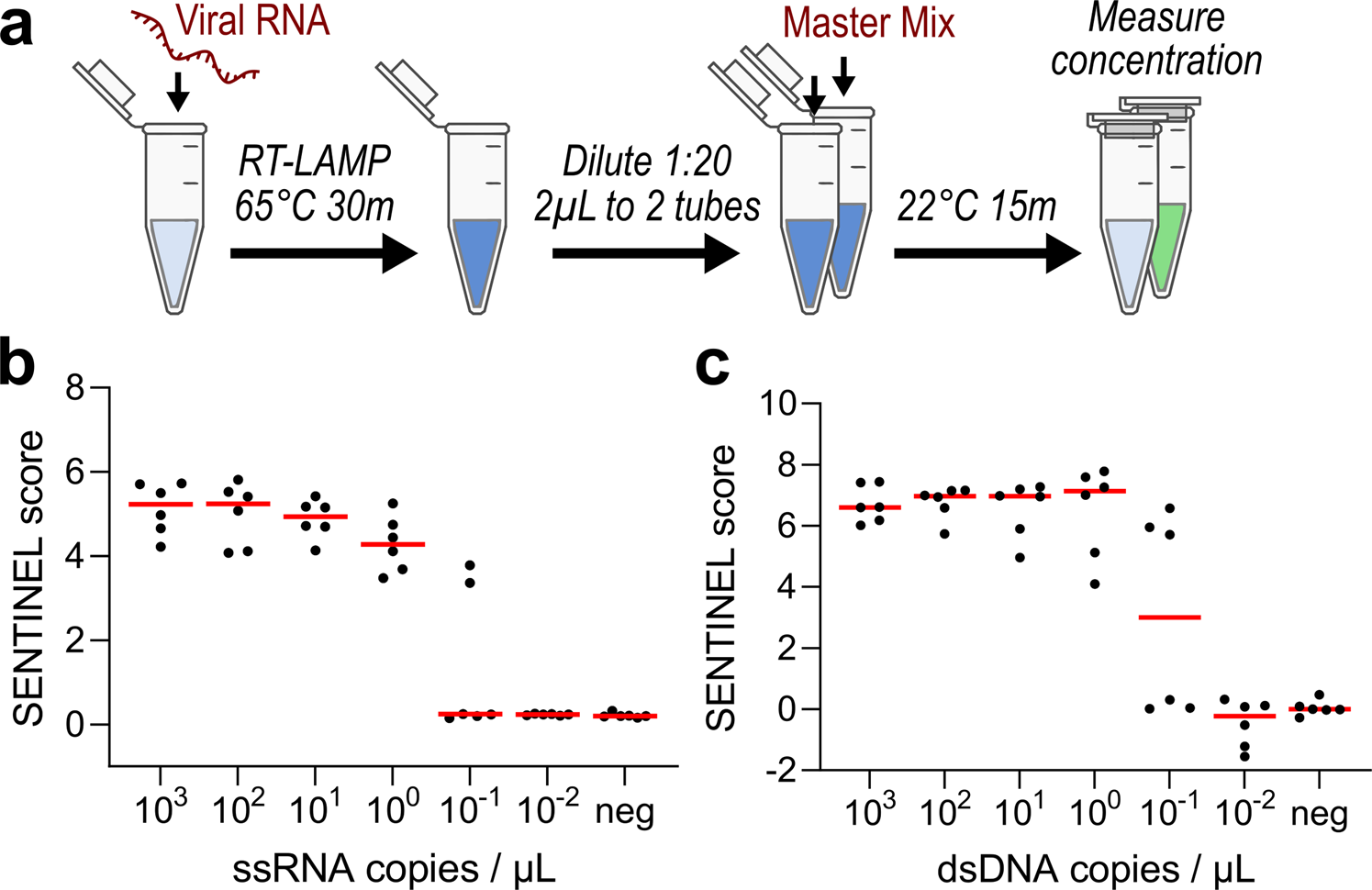

a Schematic of SENTINEL protocol, starting from synthetic, in vitro transcribed viral RNA. b and c Limit of detection on b ssRNA and c dsDNA input. Red lines correspond to median of six experimental replicates for each dilution.
