Fig. 4: Percentage of DNA sequences assigned to references displayed on the geographical locations of the lakes investigated. | Communications Biology

Fig. 4: Percentage of DNA sequences assigned to references displayed on the geographical locations of the lakes investigated.

From: Larix species range dynamics in Siberia since the Last Glacial captured from sedimentary ancient DNA

Fig. 4

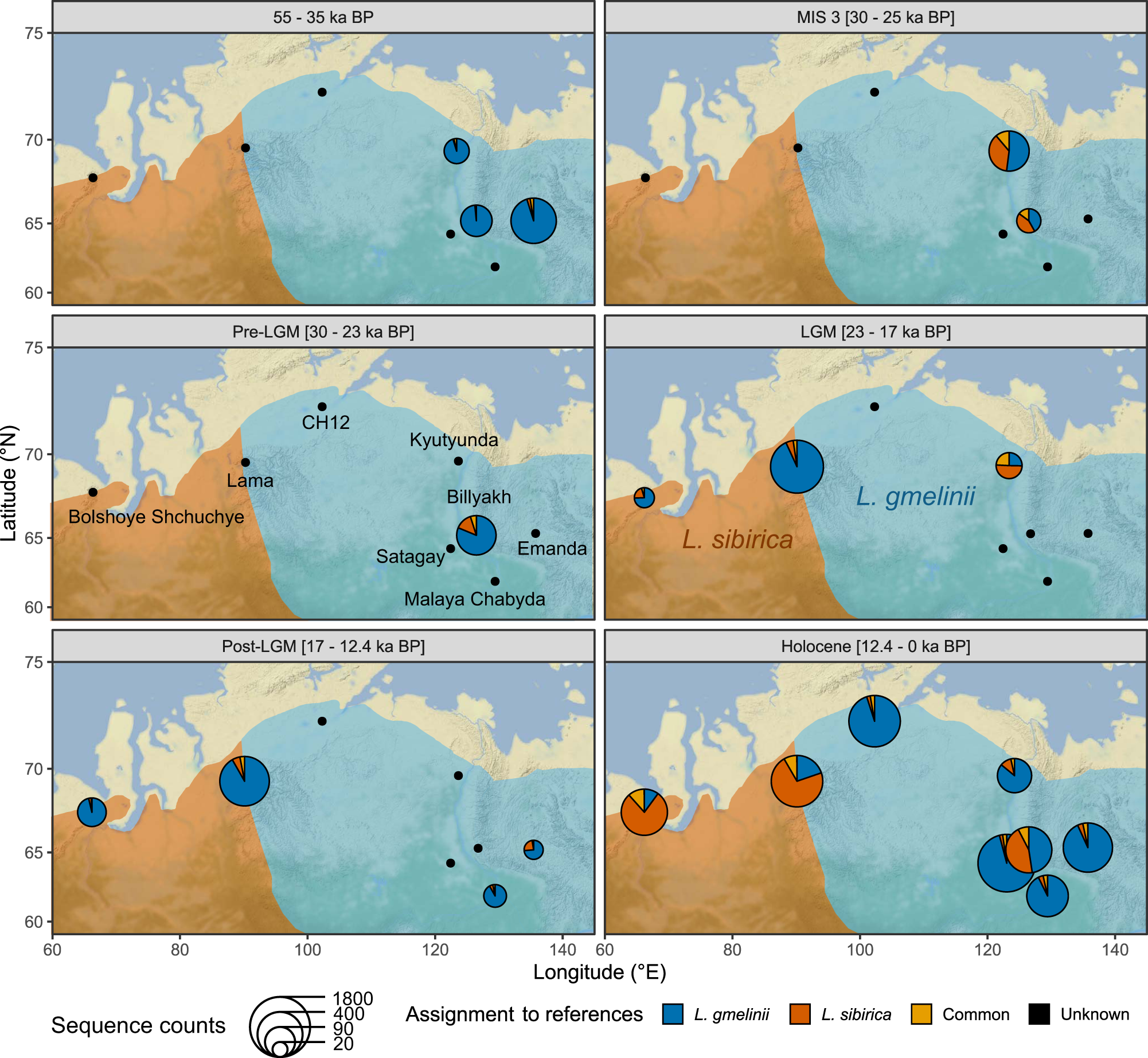

Samples in the same time frame are averaged. Lake names and current species ranges are annotated in the middle plots. Colors indicate current species distribution (adapted from Semerikov and Lascoux72). The base map is done with ggmap73, map tiles by Stamen Design, under CC BY 3.0. Data by OpenStreetMap, under ODbL.
