Fig. 3: LocusZoom plots of the ±1 Mb flanking regions for selected breast cancer (BrCa) CpGs. | Communications Biology

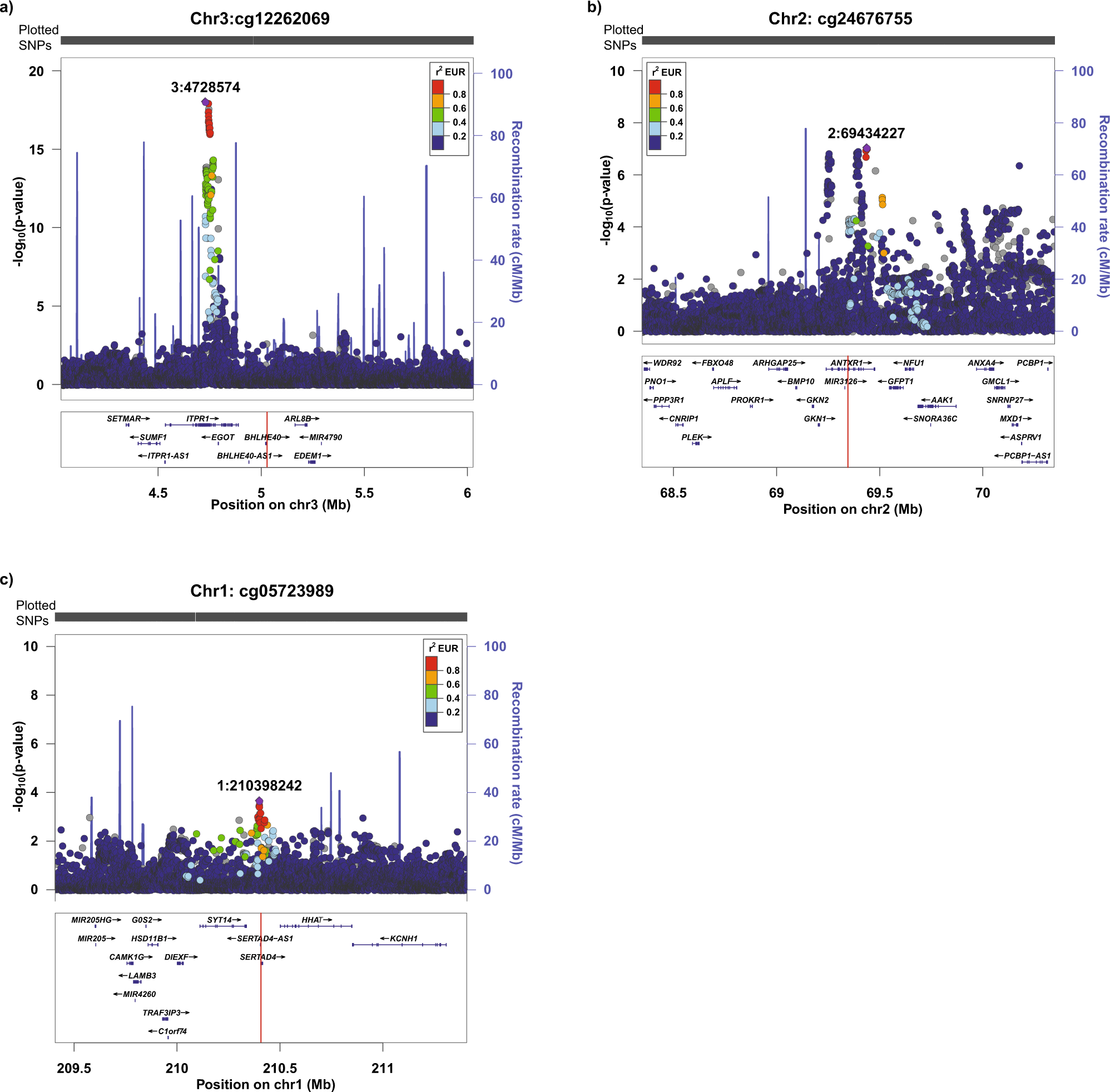

Fig. 3: LocusZoom plots of the ±1 Mb flanking regions for selected breast cancer (BrCa) CpGs.

From: Integrative multi-omic analysis identifies genetically influenced DNA methylation biomarkers for breast and prostate cancers

Fig. 3

The red line in the gene panel indicates the genomic location of the CpG site. Panel a is an example of a BrCa CpG with genome-wide significant SNPs in the flanking region, panel b is an example of a BrCa CpG with suggestive SNPs in the flanking region, and panel c is an example of a BrCa CpG identified in a novel region (i.e., no genome-wide significant or suggestive SNPs present in the flanking region).
