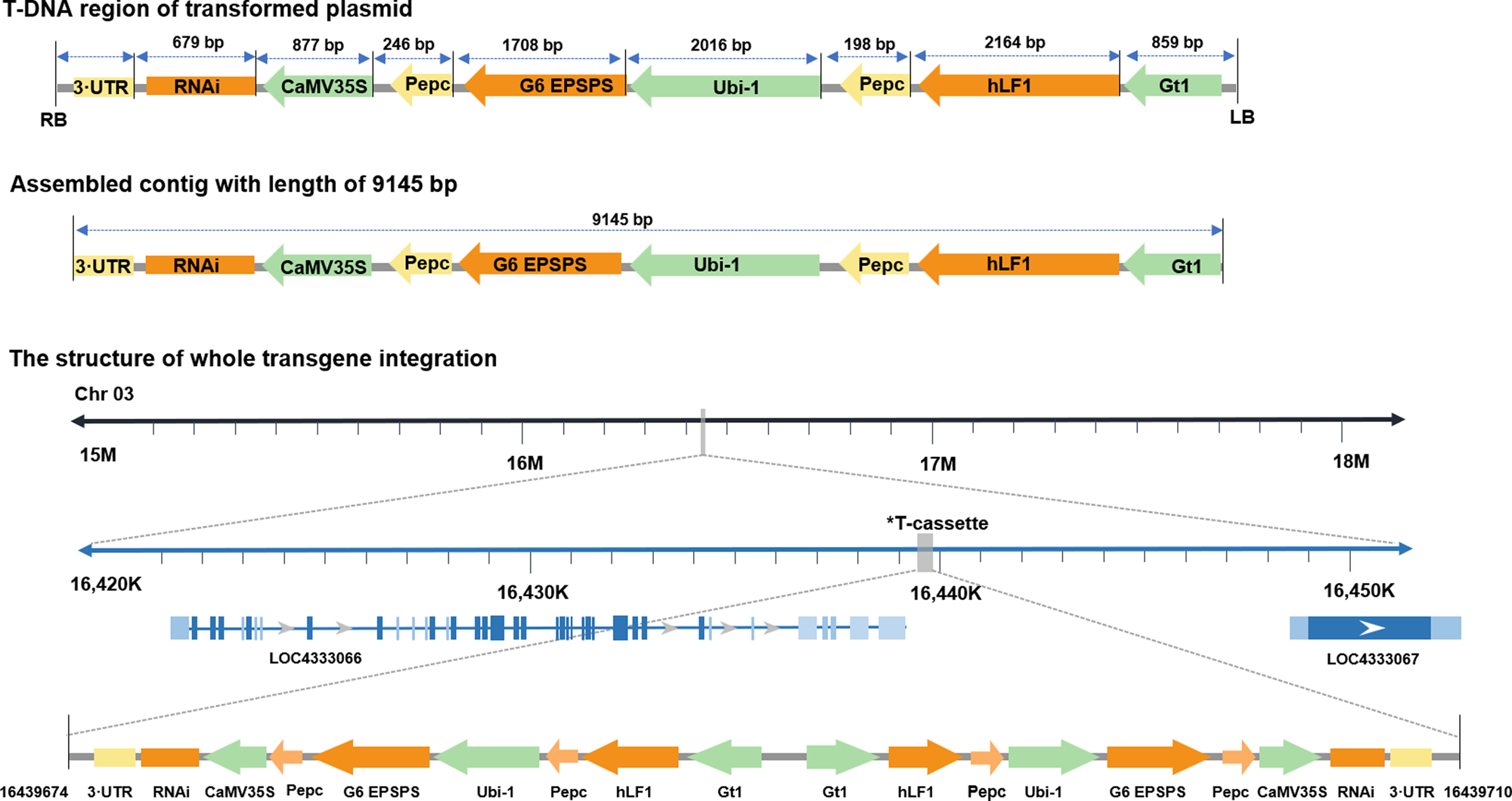

Fig. 3: Schematic diagram of whole transgene integration in G281 rice.

From: A paired-end whole-genome sequencing approach enables comprehensive characterization of transgene integration in rice

Fig. 3

RB, right border of T-DNA; LB, left border of T-DNA; Gt1, rice glutelin promoter; hLF, human lactoferrin; G6 EPSPS, the 5-enolpyruvylshikimate-3-phosphate synthase isolated from Pseudomonas putida fused with a corn chloroplast transit peptide at the N-terminus (gb: EU169459); RNAi, reverse repeat sequence for RNA interference against CYP81A6; CaMV35S, cauliflower mosaic virus 35S promoter; ZmUbi, polyubiquitin-1 promoter of Zea mays; PEPC, phosphoenolpyruvate carboxylase terminator of Zea mays.
