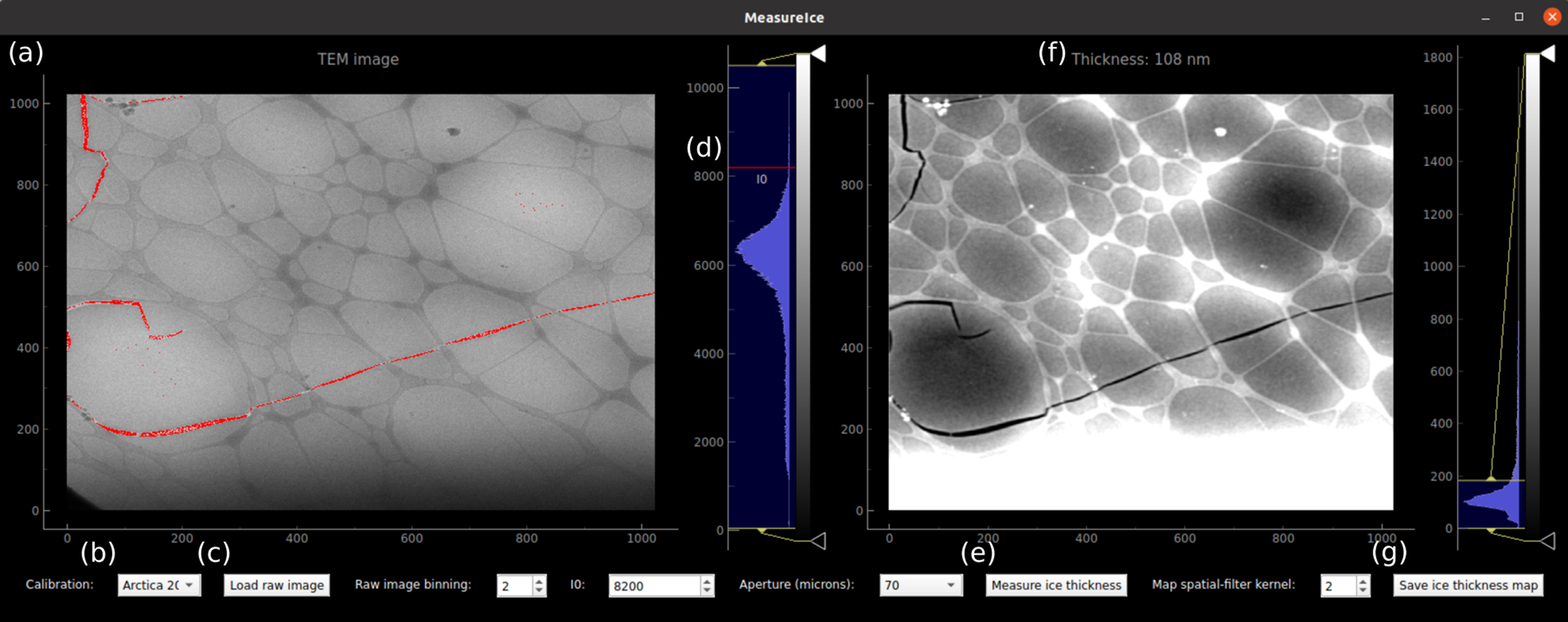

Fig. 6: Screenshot of the MeasureIce software tool.
From: MeasureIce: accessible on-the-fly measurement of ice thickness in cryo-electron microscopy
a In the left panel a raw TEM image is displayed, b the calibration file is selected via the drop-down menu, and c a new image can be loaded by pressing “Load raw image”. d The quantity I0, the incident intensity of the electron beam is set using the red line on the histogram or using the input on the bottom of the interface. e An ice thickness map is generated by pressing the “Measure ice thickness” button with (f) the ice thickness map is displayed in the right panel of the interface which can be saved by pressing (g) “Save ice thickness map”.
