Fig. 2: The identified connectome hubs are reproducible across cohorts and individuals.

From: Meta-connectomic analysis maps consistent, reproducible, and transcriptionally relevant functional connectome hubs in the human brain

Fig. 2

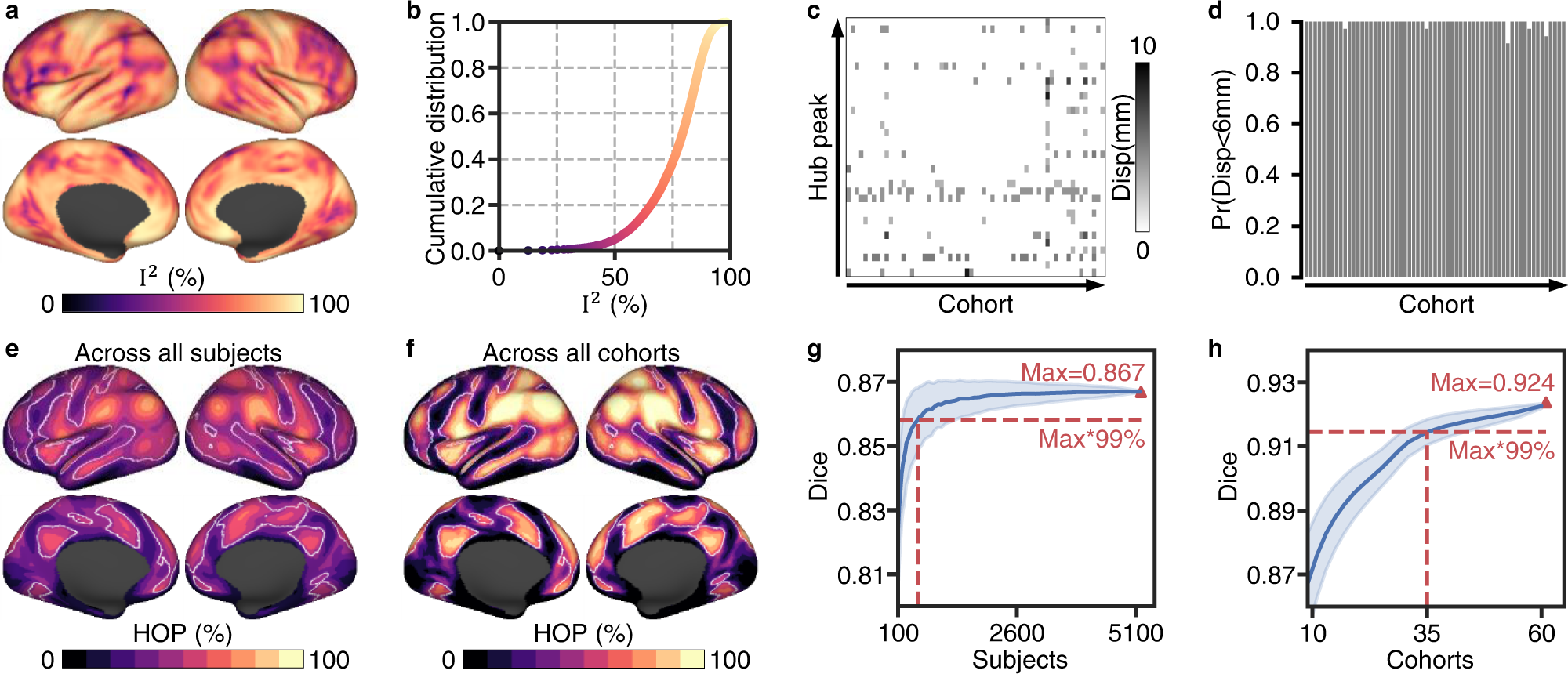

a Heterogeneity measurement I2 estimated through the random-effects meta-analysis. b Cumulative distribution function plot of I2. c Heatmap of displacements of the 35 hub peaks after leaving one cohort out. d Bar plot of the probability across the 35 hub peaks whose displacement was less than 6 mm after leaving one cohort out. e, f Hub occurrence probability (HOP) map across all subjects (e) and all cohorts (f). White lines delineate boundaries of the identified hubs in Fig. 1c. g, h Dice’s coefficient of the identified hubs in Fig. 1c compared with the top N (voxel number of the identified hubs in Fig. 1c) voxels with the highest hub occurrence probability values across randomly selected subjects (g) and randomly selected cohorts (h). Blue shading represents the standard deviation across 2000 random selections.
