Fig. 7: Changes of the free energy (ΔGbind) due to the toxins binding to α7-nAChR and/or membrane. | Communications Biology

Fig. 7: Changes of the free energy (ΔGbind) due to the toxins binding to α7-nAChR and/or membrane.

From: Membrane-mediated interaction of non-conventional snake three-finger toxins with nicotinic acetylcholine receptors

Fig. 7

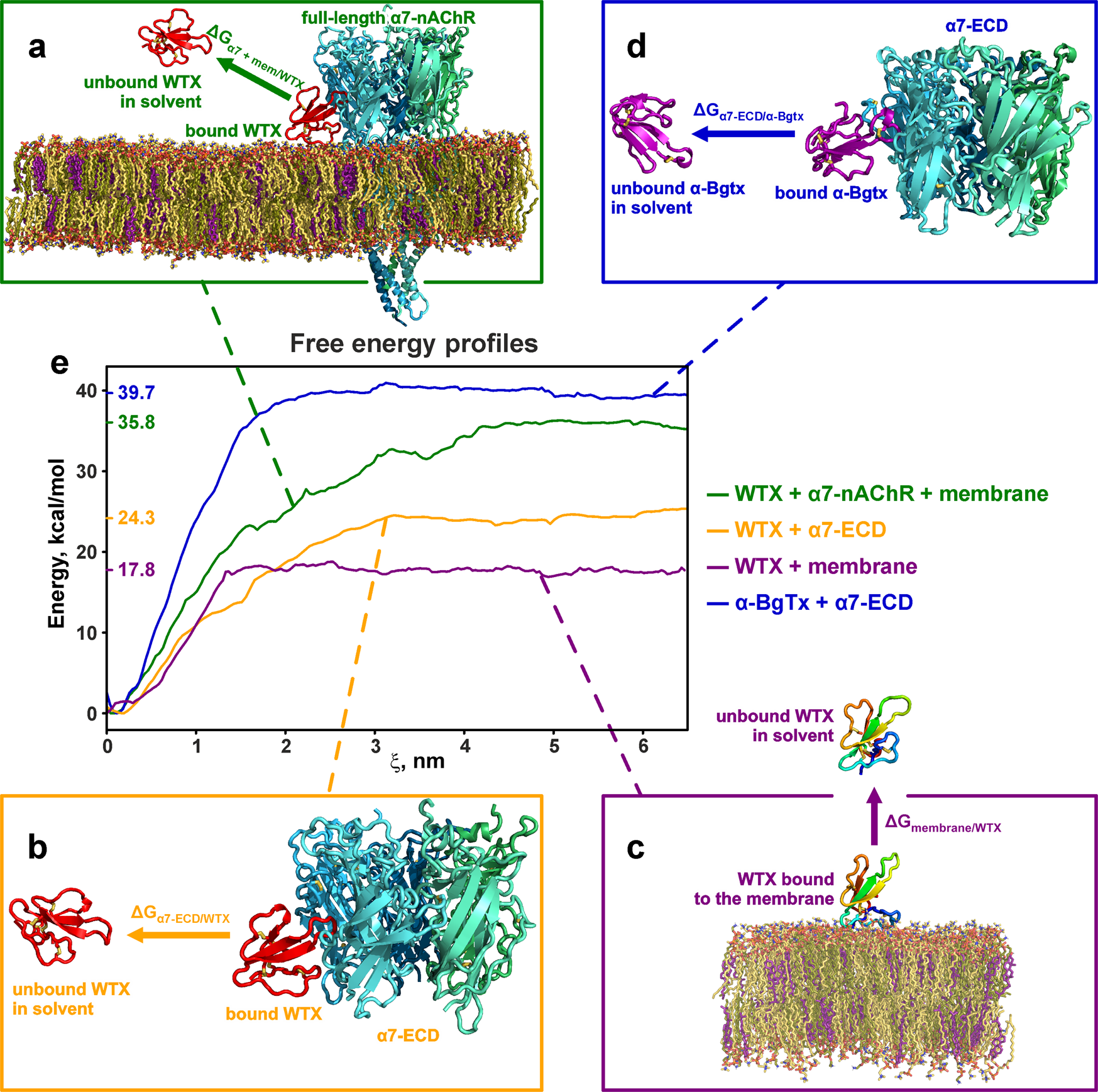

Start and end toxin positions for calculations of the binding energies for the complexes: a α7-nAChR/WTX in the membrane, b extracellular domain of α7-nAChR/WTX in solution, c membrane/WTX, d extracellular domain of α7-nAChR/α-Bgtx in solution. e Potential of mean force (PMF) curves for the studied systems.
