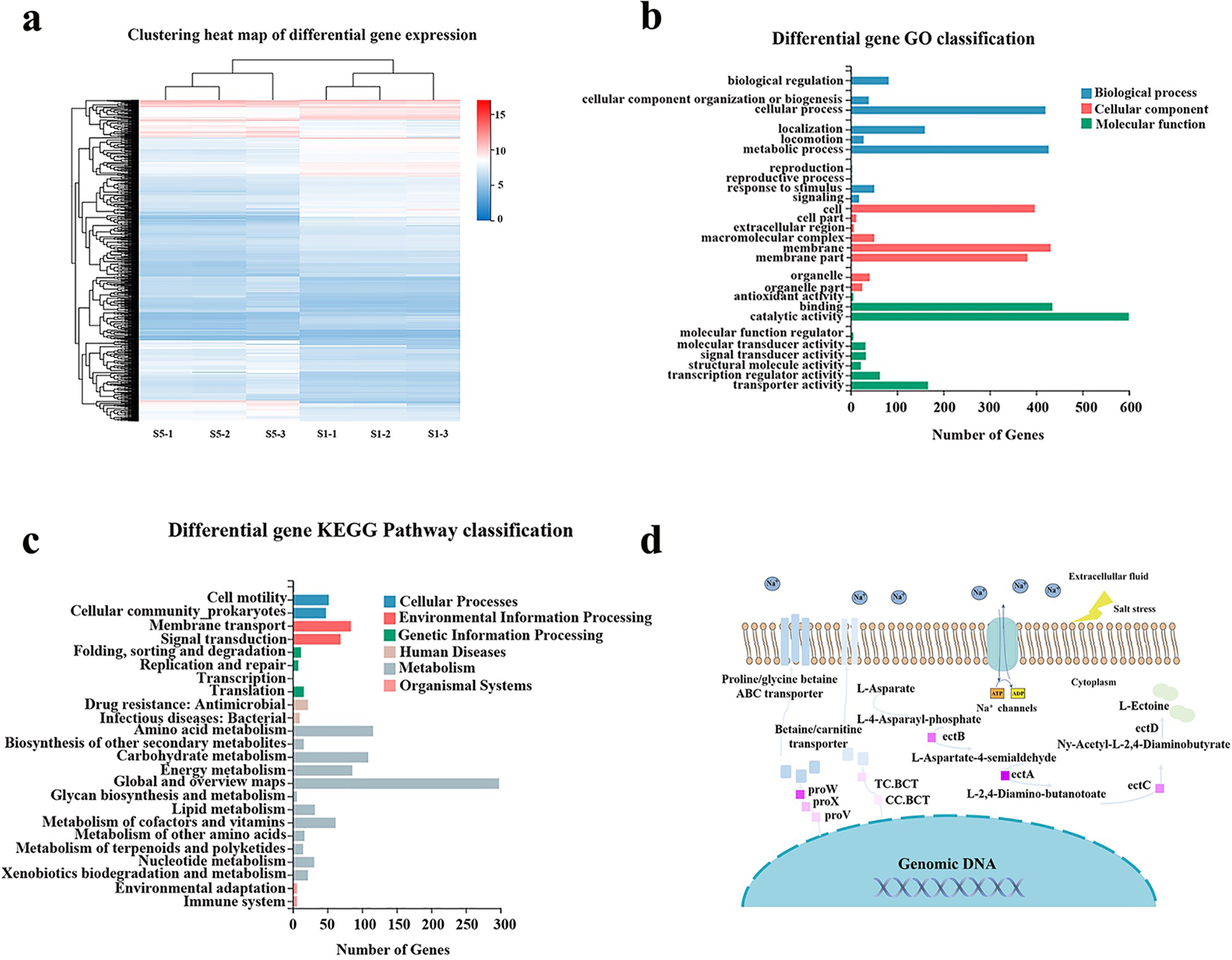

Fig. 1: Transcriptome data analysis.
From: Establishment of a salt-induced bioremediation platform from marine Vibrio natriegens
a The heat map, based on hierarchical analysis using the log2 (5%/1%) for each gene at two groups (5 and 1%), depicted that 1,596 genes were detected out. The colors were ranging from blue to red, representing the values of log2 (5%/1%). b Significantly enriched GO categories for the genes with fold changes in Log2 ≥ 4. c Differential gene KEGG pathway classification for the genes with fold changes in Log2 ≥ 4. d Proposed halophilic mechanism of strain Vmax based on the transcriptome analysis.
