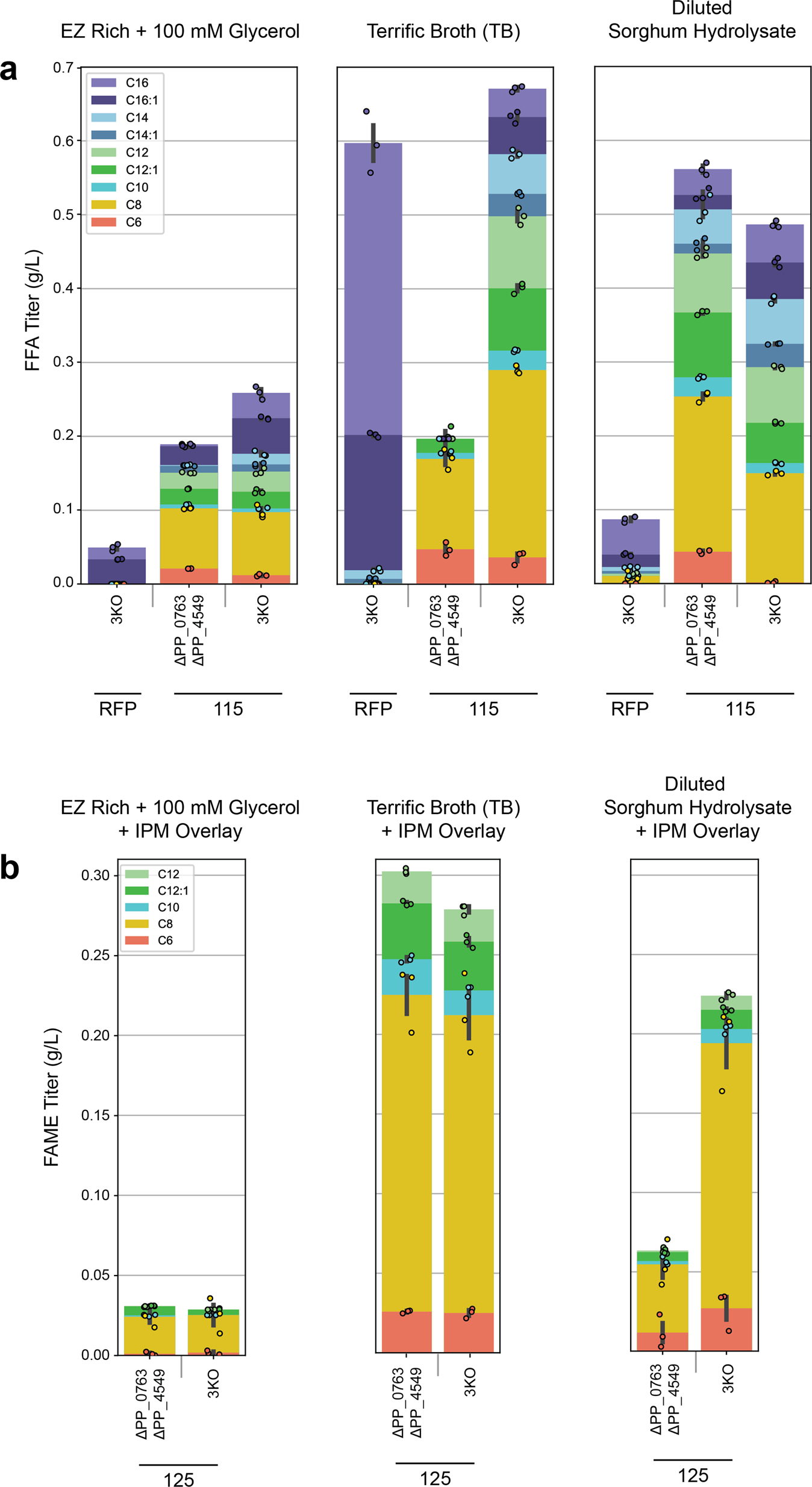

Fig. 6: FFA and FAME production profile in various P. putida strains after growth in 250 mL shake flask cultures. | Communications Biology

Fig. 6: FFA and FAME production profile in various P. putida strains after growth in 250 mL shake flask cultures.

From: Engineering Pseudomonas putida KT2440 for chain length tailored free fatty acid and oleochemical production

Fig. 6

a FFA production in EZ Rich medium supplemented with 100 mM glycerol, TB, and diluted sorghum hydrolysate. b FAME production in EZ Rich medium supplemented with 100 mM glycerol, TB, and diluted sorghum hydrolysate. Values shown represent the mean of biologically independent samples (n = 3), and error bars show standard error of the mean.
