Fig. 1: LSH10 subcellular localization, and specific interaction of LSH10 with OTLD1 in planta detected by BiFC.

From: Arabidopsis LSH10 transcription factor and OTLD1 histone deubiquitinase interact and transcriptionally regulate the same target genes

Fig. 1

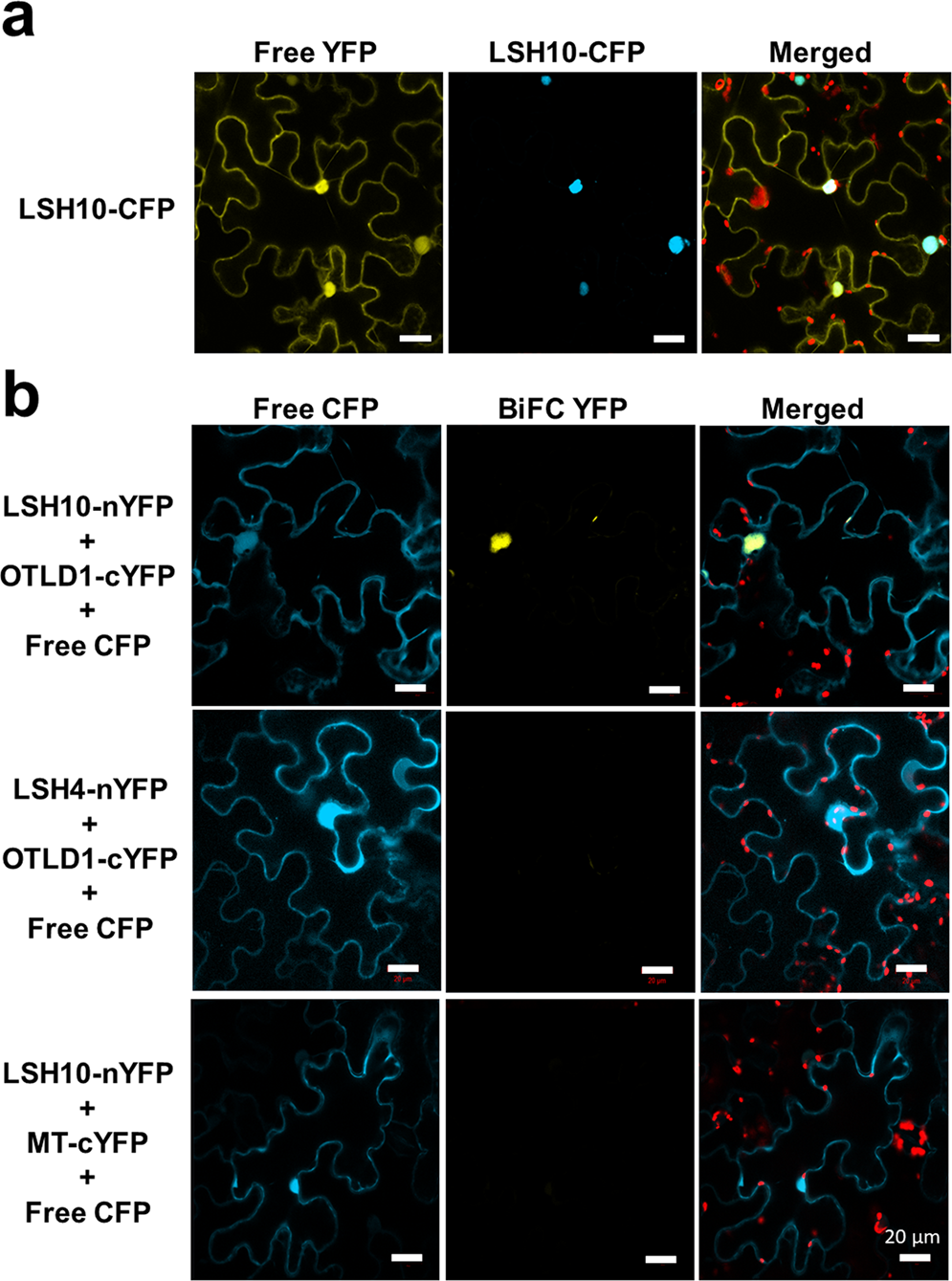

a Nuclear localization of LSH10. The LSH10 protein tagged with CFP (LSH10-CFP) and free YFP were transiently co-expressed in N. benthamiana leaves. b The BiFC assay of the interaction between LSH10 and OTLD1. The indicated combinations of proteins tagged with nYFP and cYFP were transiently co-expressed in N. benthamiana leaves. CFP signal is in cyan; YFP signal is in yellow; merged CFP and YFP signals are in cyan-yellow, and chlorophyll autofluorescence is in red. Scale bars = 20 µm. All images are single confocal sections.
