Fig. 5: Subsets of triads showing similar expression pattern across all four SHW lines in shoot tissue.

From: Global transcriptome analysis of allopolyploidization reveals large-scale repression of the D-subgenome in synthetic hexaploid wheat

Fig. 5

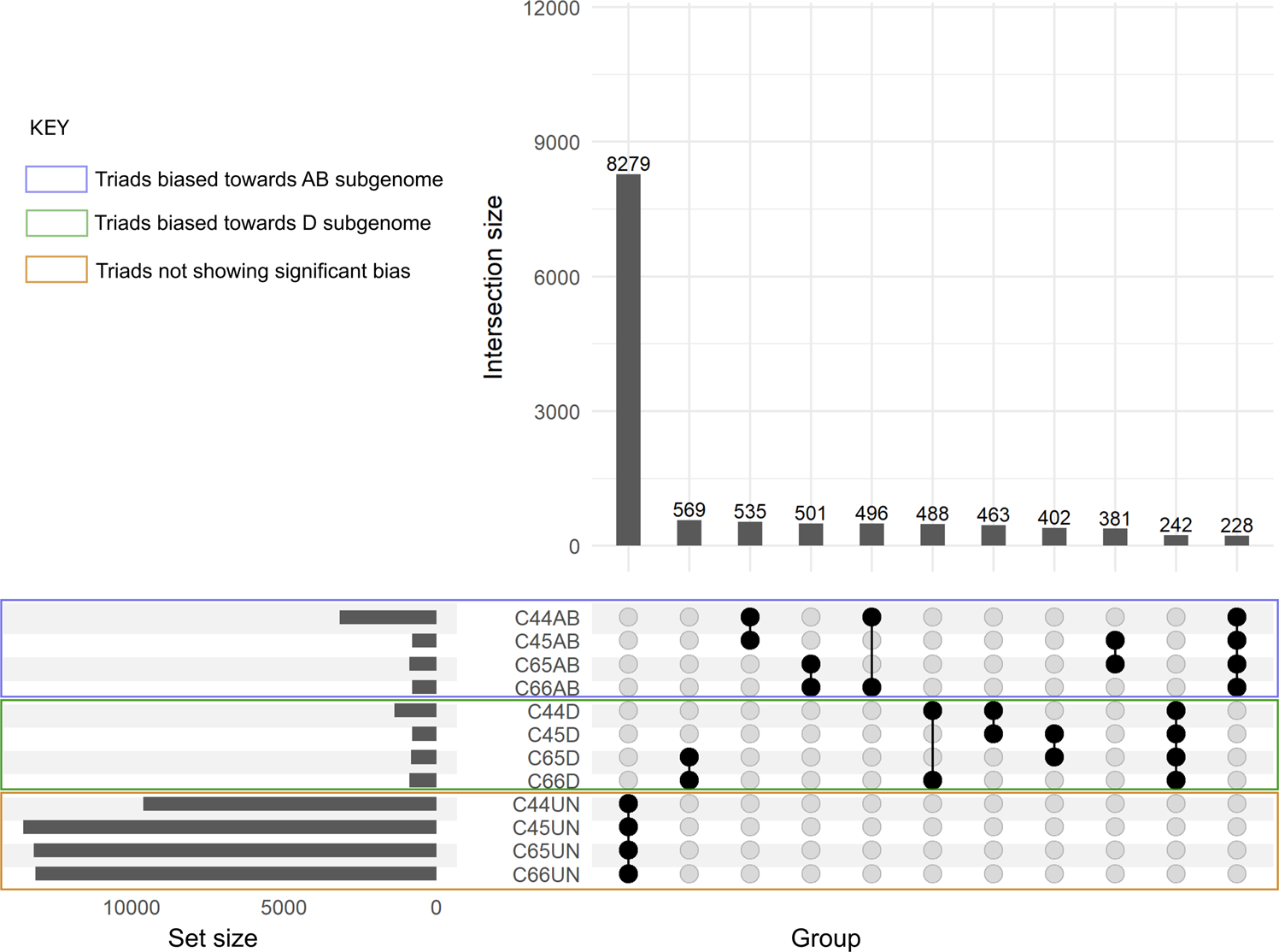

The gray horizontal bars under set size corresponding to C44AB indicates the number of triads biased towards the AB subgenome in the SHW-C44; C44D indicates the number of triads biased towards the D subgenome in the SHW-C44; C44UN indicates the number of triads showing no significant bias in the SHW-C44; Similarly, for SHWs C45, C65 and C66. The vertical bars under intersection size indicate the number of triads showing similar expression patterns between sets. The black dots highlight the two SHW sets compared for the corresponding intersection. The number over the bars represents the number of triads showing similar expression pattern. The triad sets showing significant bias towards the AB or D subgenomes and those not showing any significant bias are highlighted by the blue, green and brown rectangles, respectively.
