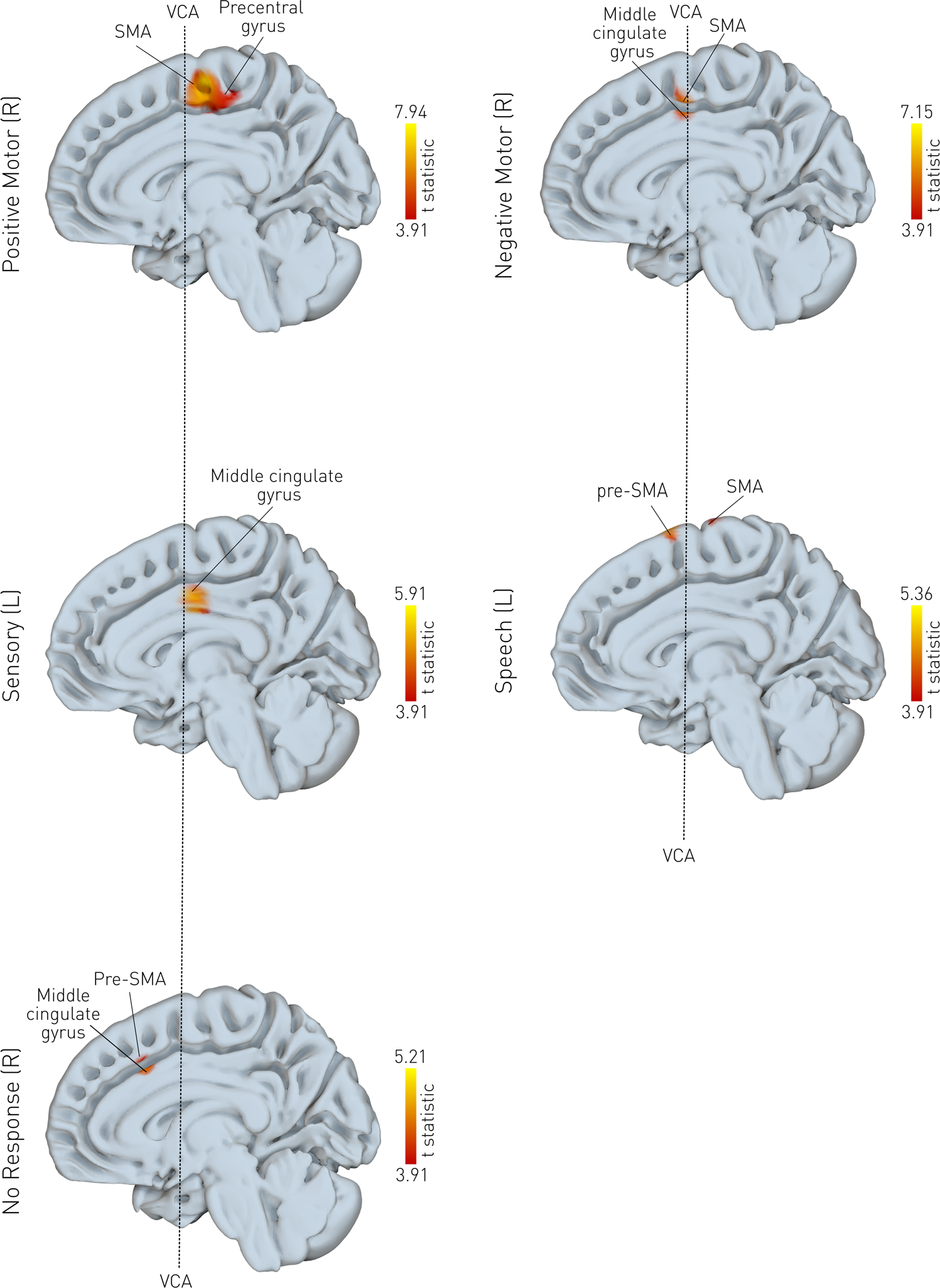

Fig. 3: Local disruptive mapping of behaviour.
From: A framework for focal and connectomic mapping of transiently disrupted brain function
For each MNI voxel, a planned t-contrast was performed. Only voxels surviving the p < 0.05 FWE-corrected threshold are shown, overlaid on the mid-sagittal plane, where higher t-statistics (brighter colour) represent a stronger association between the electrode density value and the observed behaviour. 153 stimulation points were associated with positive motor responses, 41 with negative motor responses, 46 with sensory phenomena, 46 with speech disturbances and 234 were deemed silent contacts. R right, L left, (pre-)SMA supplementary motor area.
