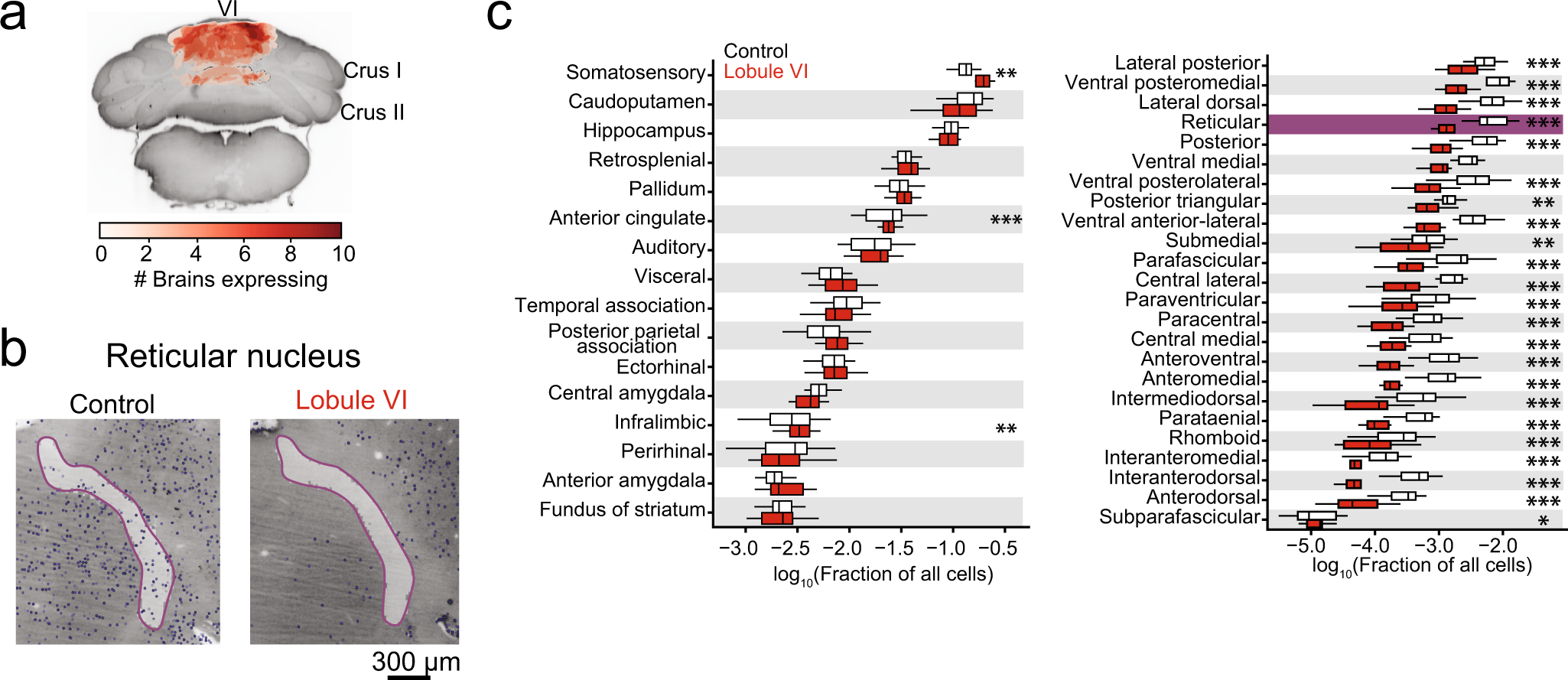

Fig. 4: Effects of lobule VI perturbation on whole-brain c-Fos.
From: Cerebellar contributions to a brainwide network for flexible behavior in mice
a Overlay of regions of DREADD-AAV expression recovered using immunofluorescent labeling of mCherry and lightsheet microscopy imaging. b Example images of ClearMap cell counting in the reticular nucleus comparing Lobule VI (n = 16) and CNO only control after reversal (n = 22). c Fraction of all cells (log10) by total regions analyzed in the telencephalon and thalamus comparing Lobule VI and CNO only after reversal. Comparisons were made using a negative binomial regression. Yellow: *p < 0.05, Green: **p < 0.01, Red: ***p < 0.001.
