Fig. 2: CLE33 is a root-active peptide inhibiting root growth in a BAM3-dependent manner. | Communications Biology

Fig. 2: CLE33 is a root-active peptide inhibiting root growth in a BAM3-dependent manner.

From: The CLE33 peptide represses phloem differentiation via autocrine and paracrine signaling in Arabidopsis

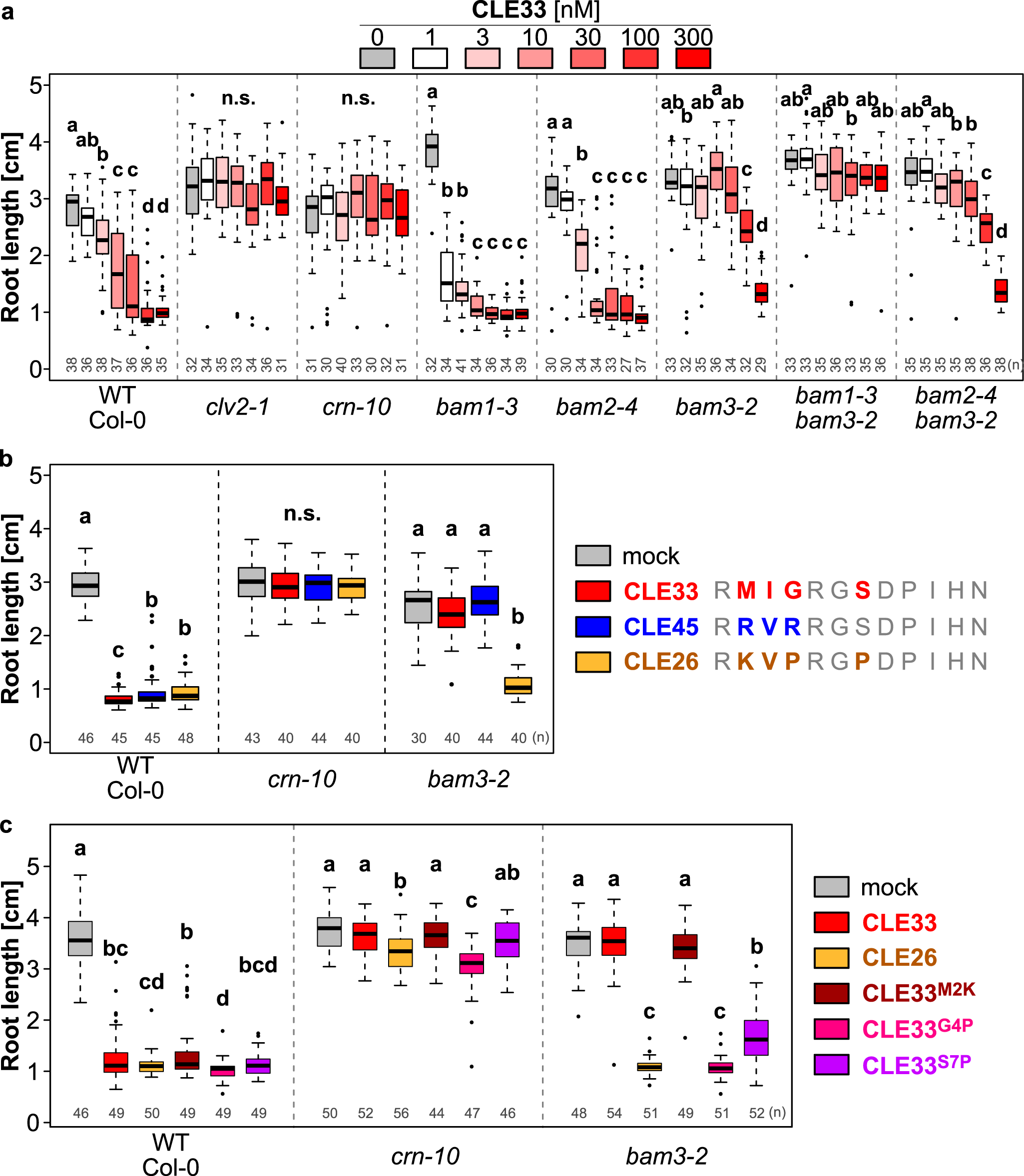

Fig. 2

a Dose-dependent root growth inhibition by CLE33p in the wild type and CLE receptor mutants. b Root growth inhibition with synthetic CLE33 (30 nM), CLE45 (30 nM), CLE26 (3 nM) peptides. c Root growth inhibition of CLE33 peptide variants CLE33M2K, CLE33G4P, CLE33S7P (30 nM). a–c Letters indicate different statistical groups (ANOVA, post hoc Tukey test).
