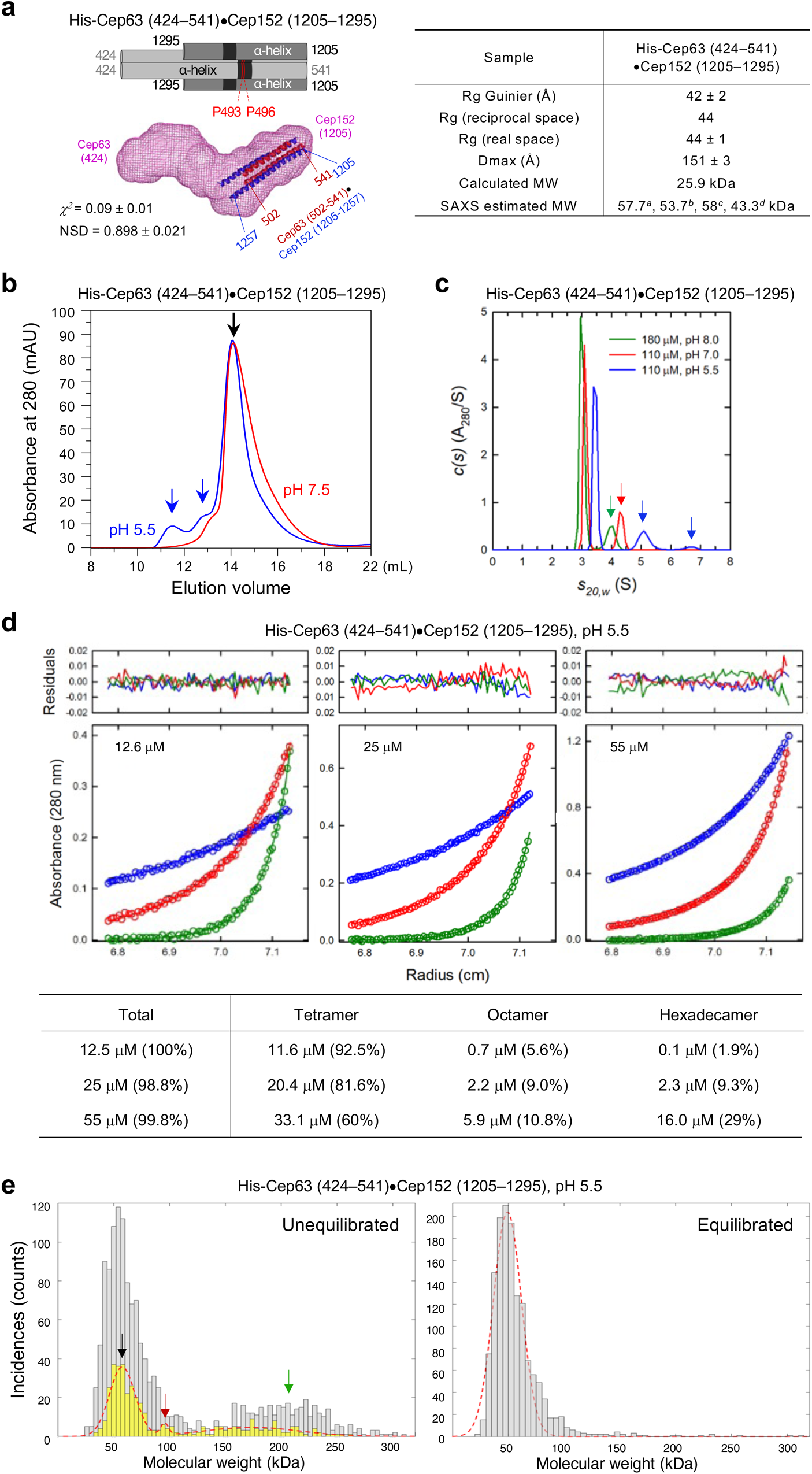

Fig. 2: A SAXS-derived ab initio envelope for the heterotetrameric Cep63 (424–541)•Cep152 (1205–1295) complex and the cooperative formation of its hexadecameric form.
