Fig. 9: INS enhancement during the task in Experiment 3. | Communications Biology

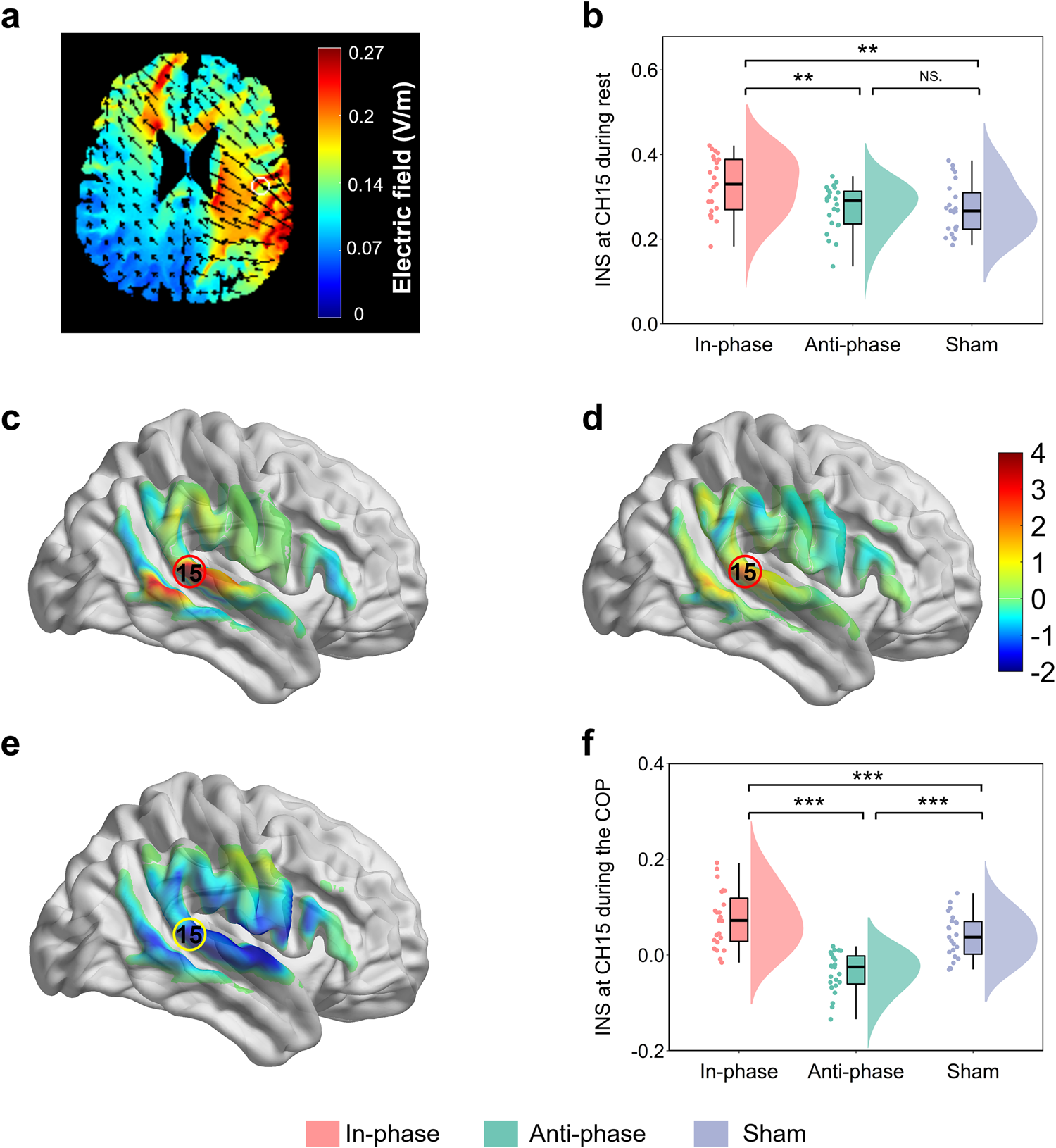

Fig. 9: INS enhancement during the task in Experiment 3.

From: Shared intentionality modulates interpersonal neural synchronization at the establishment of communication system

Fig. 9

a Electric field distribution on the brain. b Differences in INS during the resting period among the three conditions were compared by one-way analysis of variance (ANOVA). c One-sample t-test map of INS in the right temporal-parietal regions under the in-phase condition (two-tailed, FDR correction). d One-sample t-test map of INS in the right temporal-parietal regions under the sham condition (two-tailed, FDR correction). e One-sample t-test map of INS in the right temporal-parietal areas under the anti-phase condition (two-tailed, FDR correction). f Differences in INS during the COP among the three conditions were compared using a one-way analysis of variance (ANOVA). Data are plotted as violin and box plots for each group, with white dots indicating median values, boxes indicating 25% and 75% quartiles, and whiskers indicating the 2.5–97.5% percentile range. INS interpersonal neural synchronization, COP coordination period; *p < 0.05, **p < 0.01, ***p < 0.001 and NS not significant.
