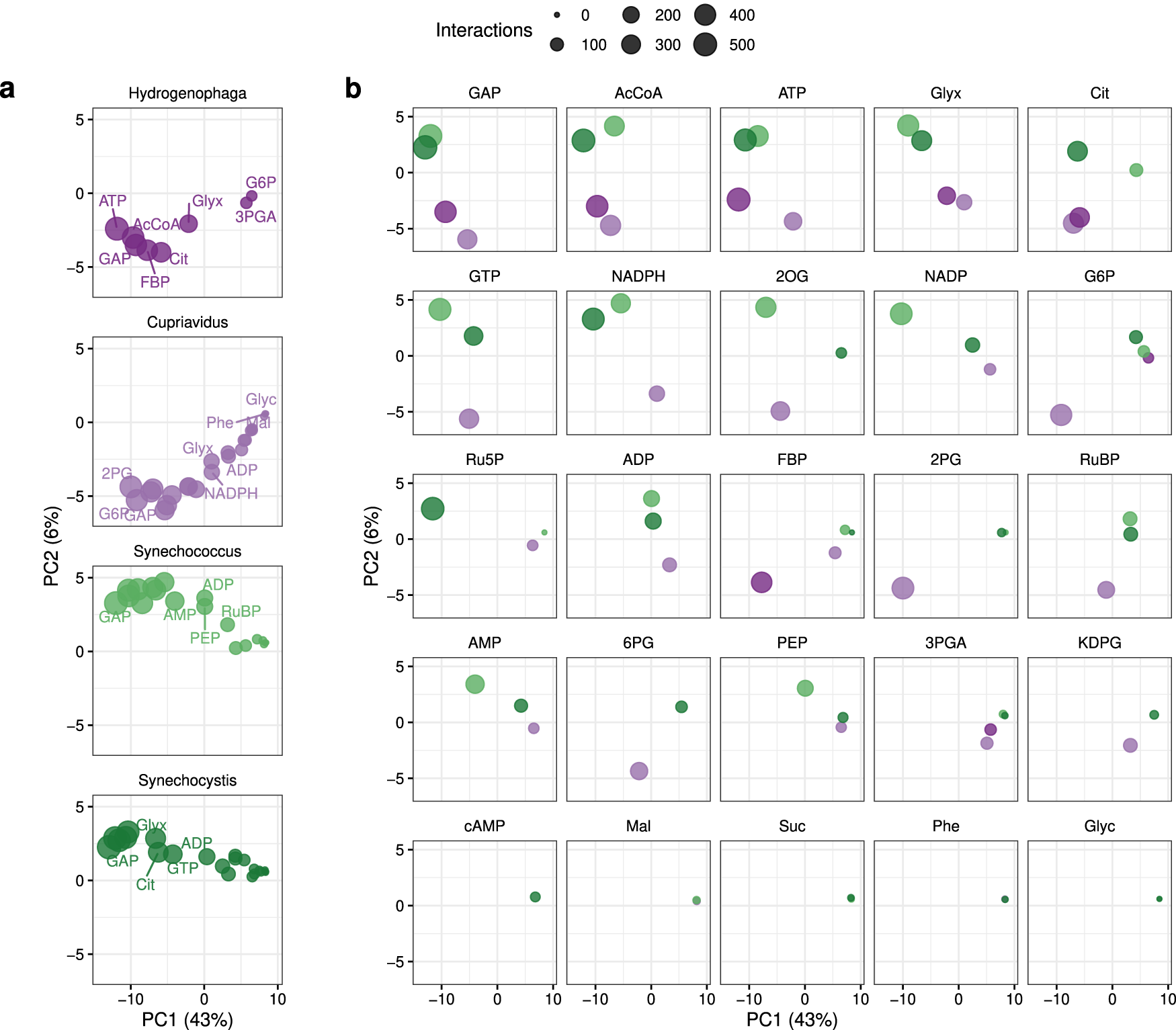

Fig. 2: Similarity of ortholog interaction patterns, high added metabolite concentration.
From: Metabolite interactions in the bacterial Calvin cycle and implications for flux regulation
Principal components were calculated from the presence or absence of interaction with each of 477 orthologs (“Methods”). All data points shown here are from the same principal component analysis but split per organism (a) or metabolite (b) to reduce overplotting. Percentages indicate the fraction of the total variance captured by the principal components.
