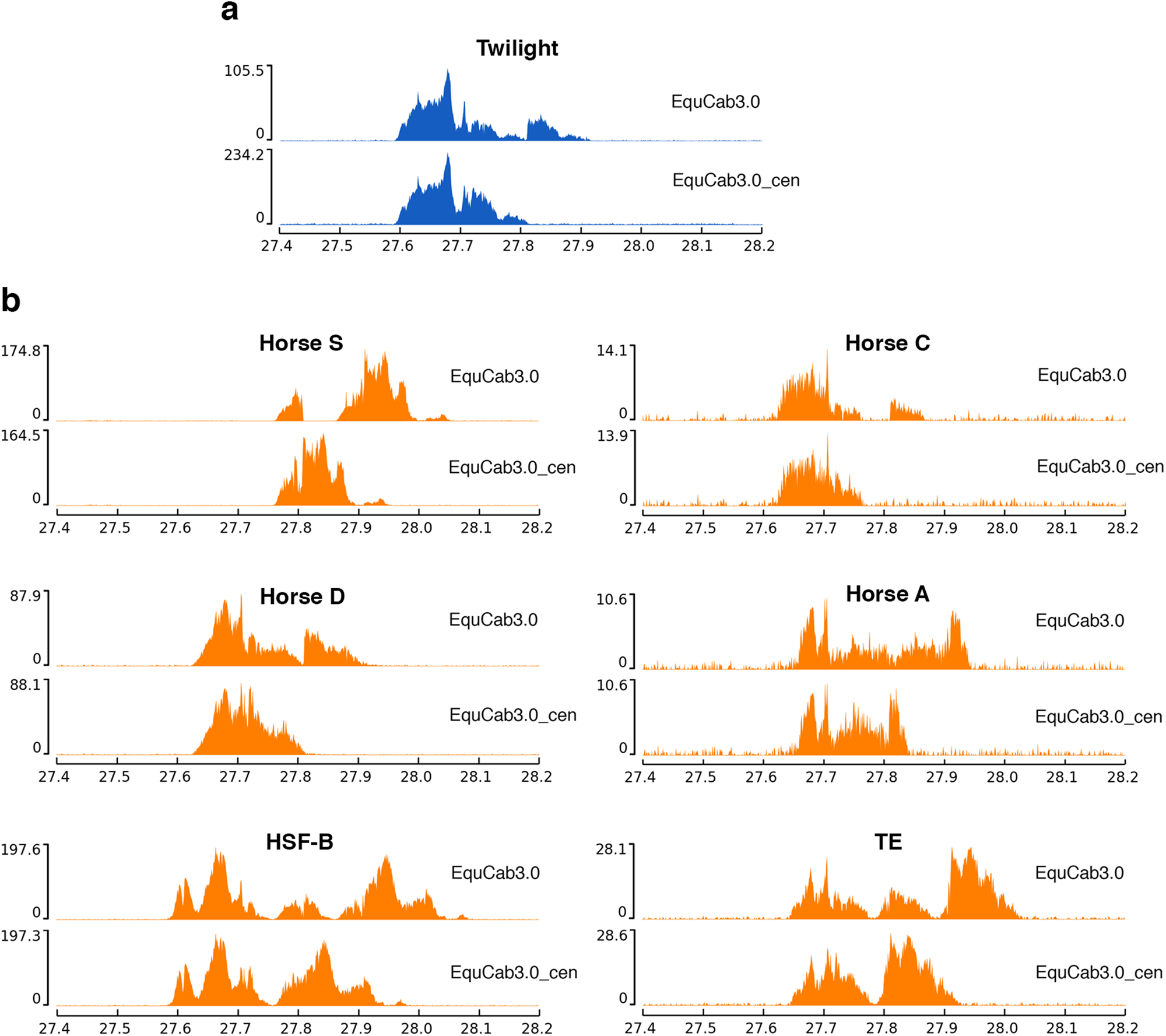

Fig. 1: Improvement of the reference sequence in the ECA11 centromeric region.
From: The localization of centromere protein A is conserved among tissues
a ChIP-seq reads from primary fibroblasts of Twilight were mapped on the EquCab3.0 (upper panel) or on the EquCab3.0_cen (lower panel) references. The CENP-A enriched domain is visualized as a peak. The y-axis reports the normalized read counts whereas the x-axis reports the coordinates on the reference genome. b ChIP-seq reads from the primary fibroblasts of six different horse individuals were mapped on the EquCab3.0 (upper panels) or on the EquCab3.0_cen (lower panels) references. The CENP-A enriched domains are visualized as a peak. The y-axis reports the normalized read counts whereas the x-axis reports the coordinates on the reference genome.
