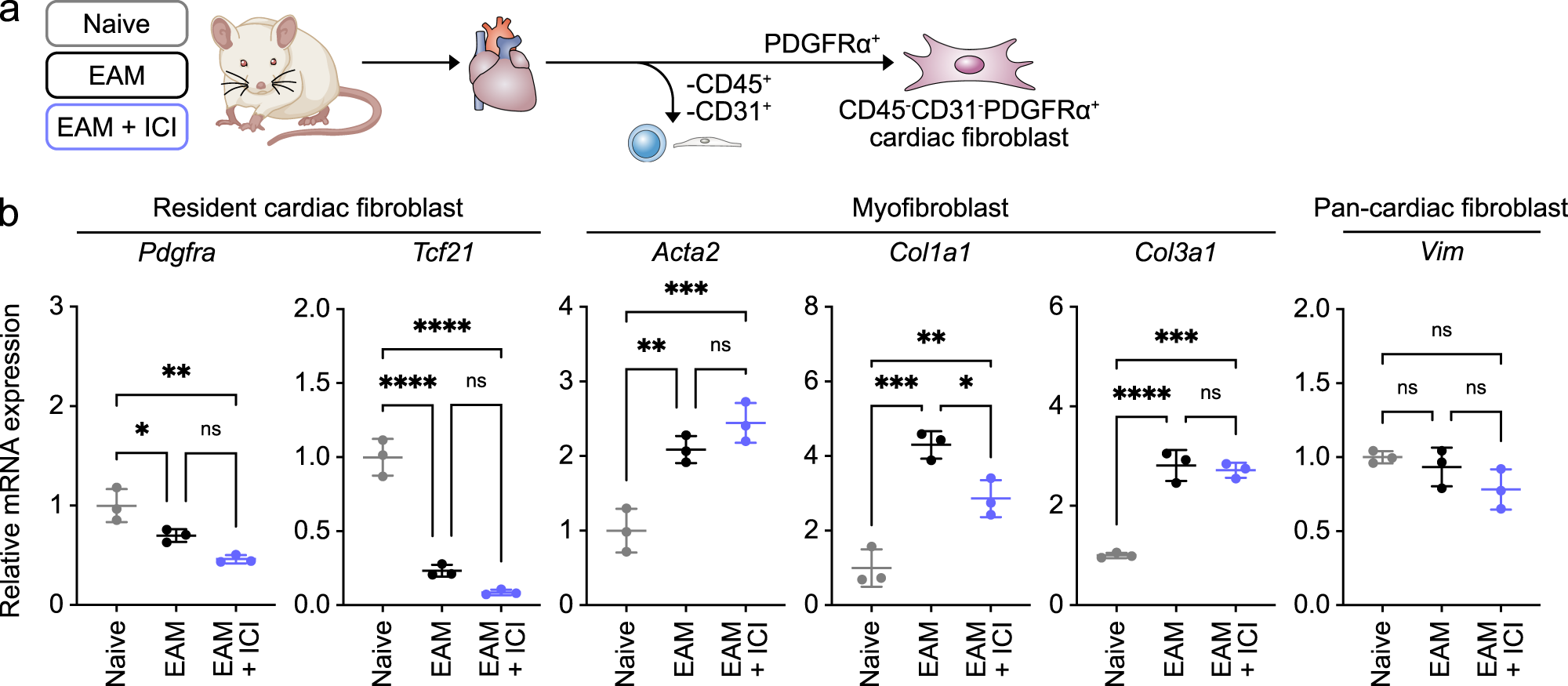

Fig. 2: Phenotypic characterization of cardiac fibroblasts in the EAM.
From: ANGPTL2 promotes immune checkpoint inhibitor-related murine autoimmune myocarditis
a Schematic showing isolation of CD45-CD31-PDGFRα+ cardiac fibroblasts from naive, EAM only, and EAM + ICI mice. b qRT-PCR analysis of CD45-CD31-PDGFRα+ cardiac fibroblasts for transcripts of markers indicated at the top in indicated groups. Naive levels were set to 1. Data are means ± SD; n = 3 per group. ns, not significant (P > 0.05); ****P < 0.0001; ***P < 0.001; **P < 0.01; *P < 0.05, one-way ANOVA test followed by Tukey’s multiple comparison test.
