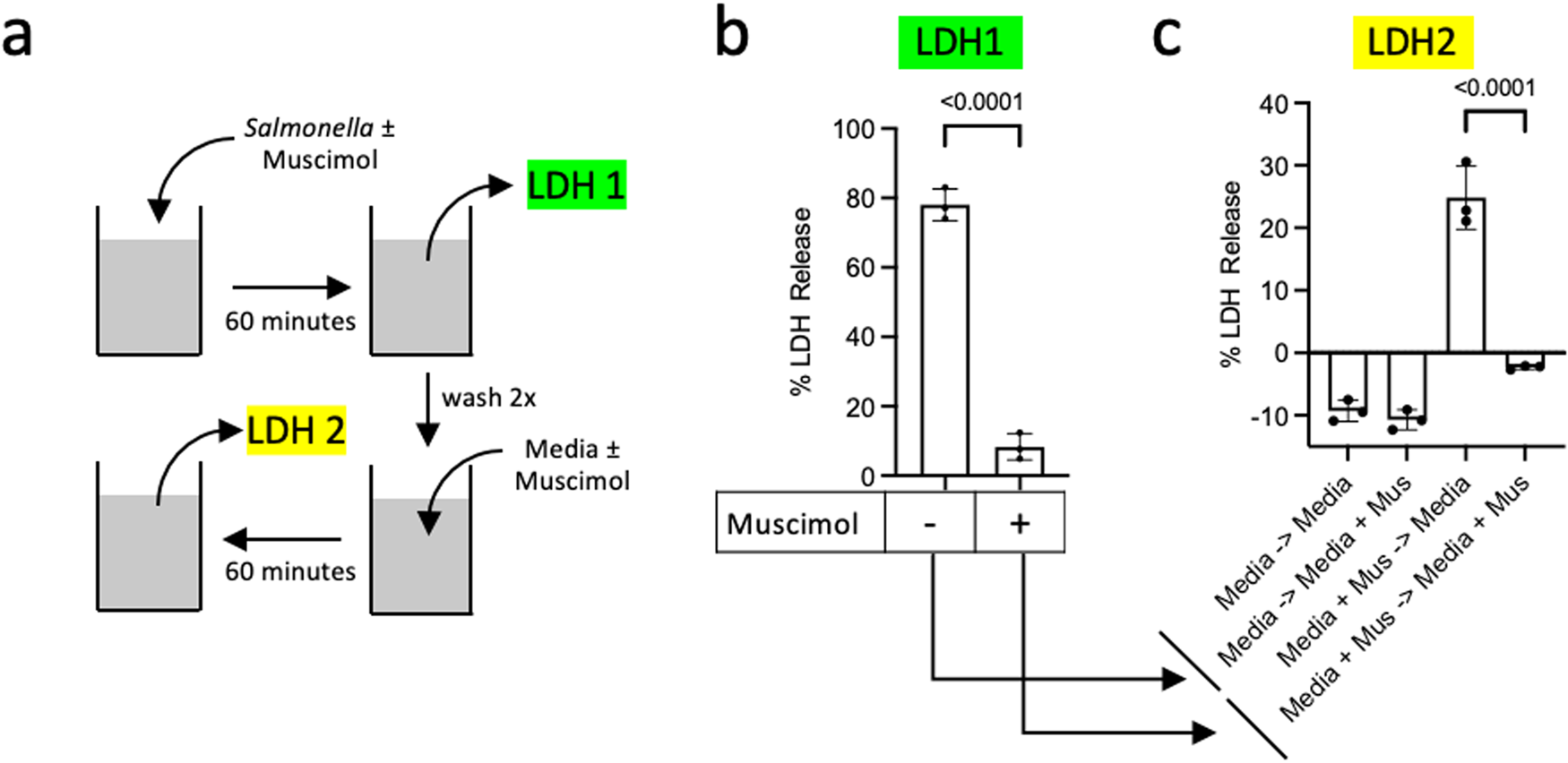

Fig. 4: Inhibition of cellular lysis by muscimol is reversible.
From: Muscimol inhibits plasma membrane rupture and ninjurin-1(NINJ1) oligomerization during pyroptosis
a Schematic representation of the experiment. b BMM were infected with Salmonella for 60 min in a medium containing muscimol (as indicated) and cell lysis was measured by LDH release (LDH 1). c New medium with or without muscimol was added and LDH released during the next 60 min was measured (LDH 2). Statistics: t-test (b) or one-way ANOVA + Tukey’s multiple comparisons (c). nd is none detected. Representative data in b and c (mean ± SD, n = 3) from two independent experiments are shown.
