Fig. 3: Domain-selective networks.

From: Task-based activation and resting-state connectivity predict individual differences in semantic capacity for complex semantic knowledge

Fig. 3

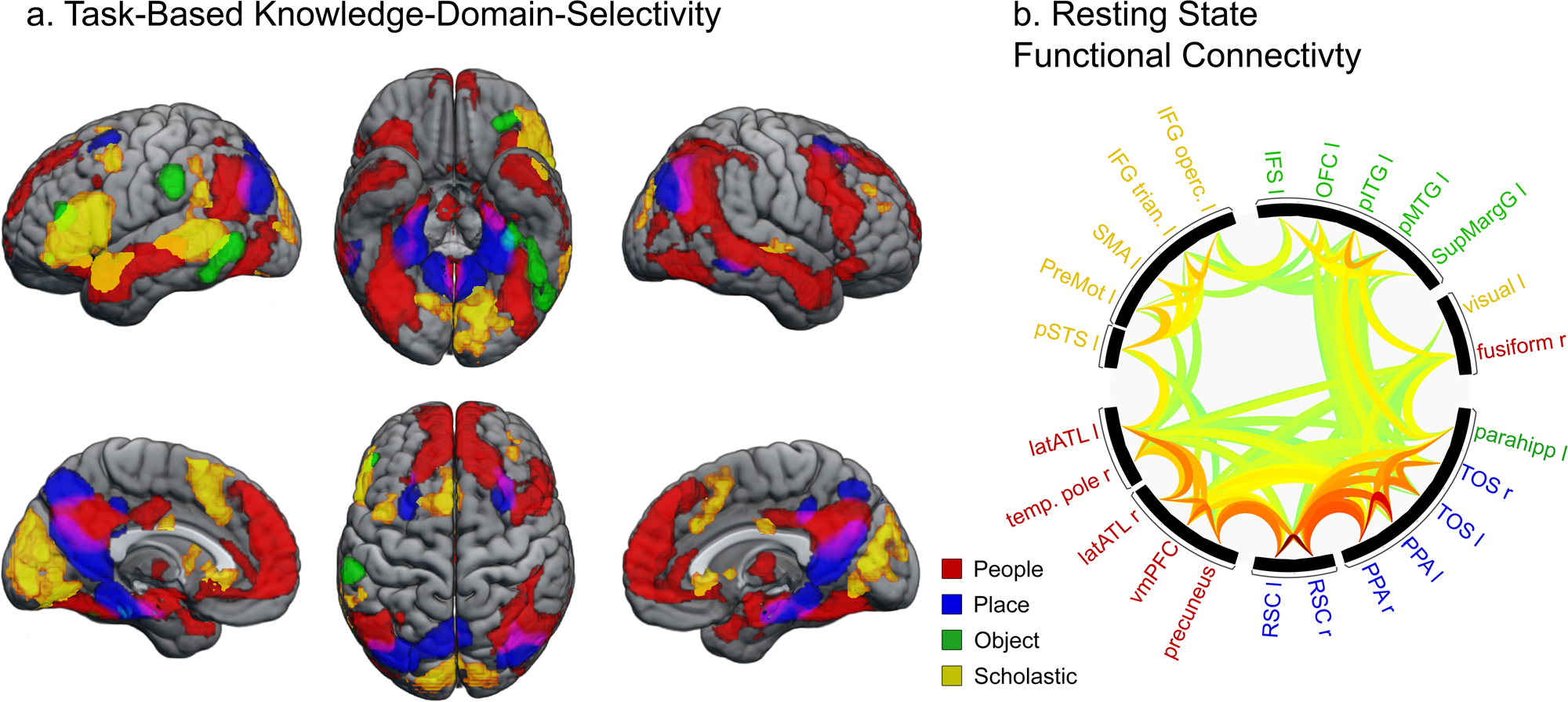

a Statistical parametric map of cortical regions showing knowledge-domain selectivity. For each of the four knowledge domains, the response for that domain was contrasted with the average of the other three (initial voxel-wise threshold, p < 0.001, cluster-corrected at p < 0.05). b Radial plot of resting-state positive functional connectivity between the six most selective nodes of each domain-selective network. Colour-code indicates the t-values of individual connection strength and solid black borders indicate significant clusters of connected regions (p < 0.05, FDR corrected).
