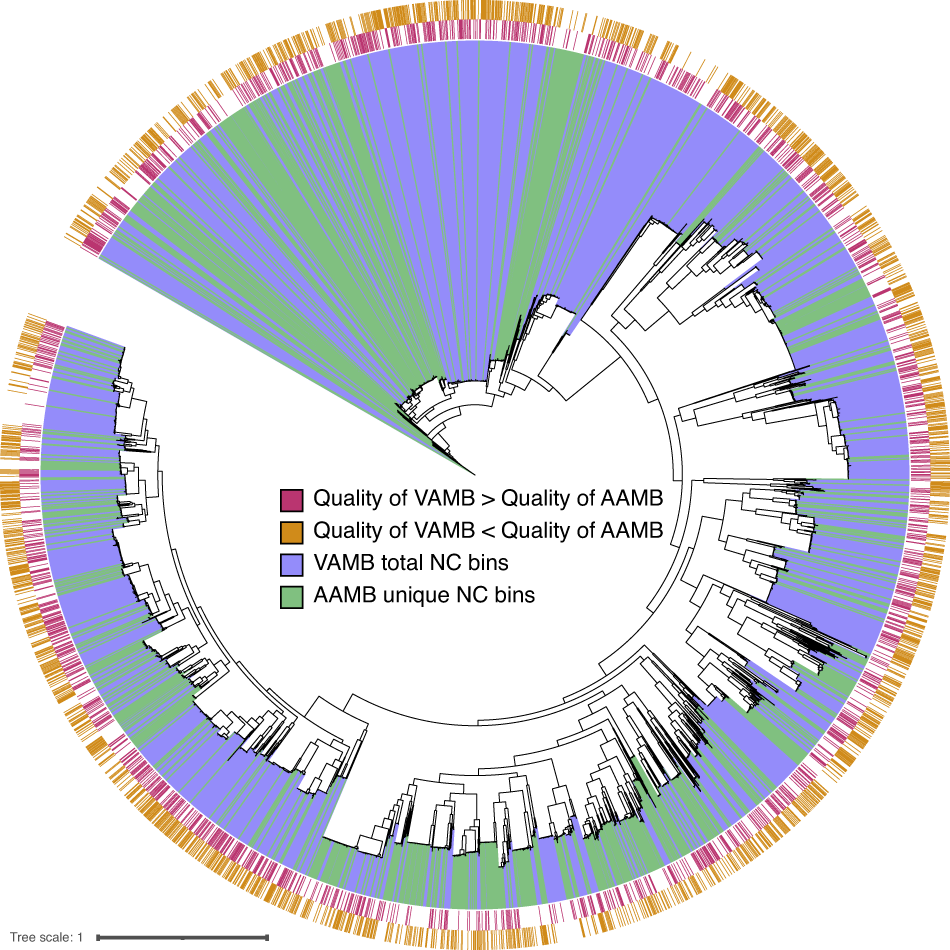

Fig. 4: Maximum-likelihood phylogenetic tree of the NC bins reconstructed by VAMB and AAMB from the Almeida dataset.
From: Adversarial and variational autoencoders improve metagenomic binning
GTDB-tk was used to generate the multiple sequence alignment, IQ-tree to produce the tree, and iTOL to visualise the tree. Red stripe: bins reconstructed by VAMB with a higher score than AAMB, golden stripe: reconstructed by AAMB with a higher score than AAMB, blue range: bins reconstructed by VAMB, green range: bins reconstructed only by AAMB and not by VAMB.
