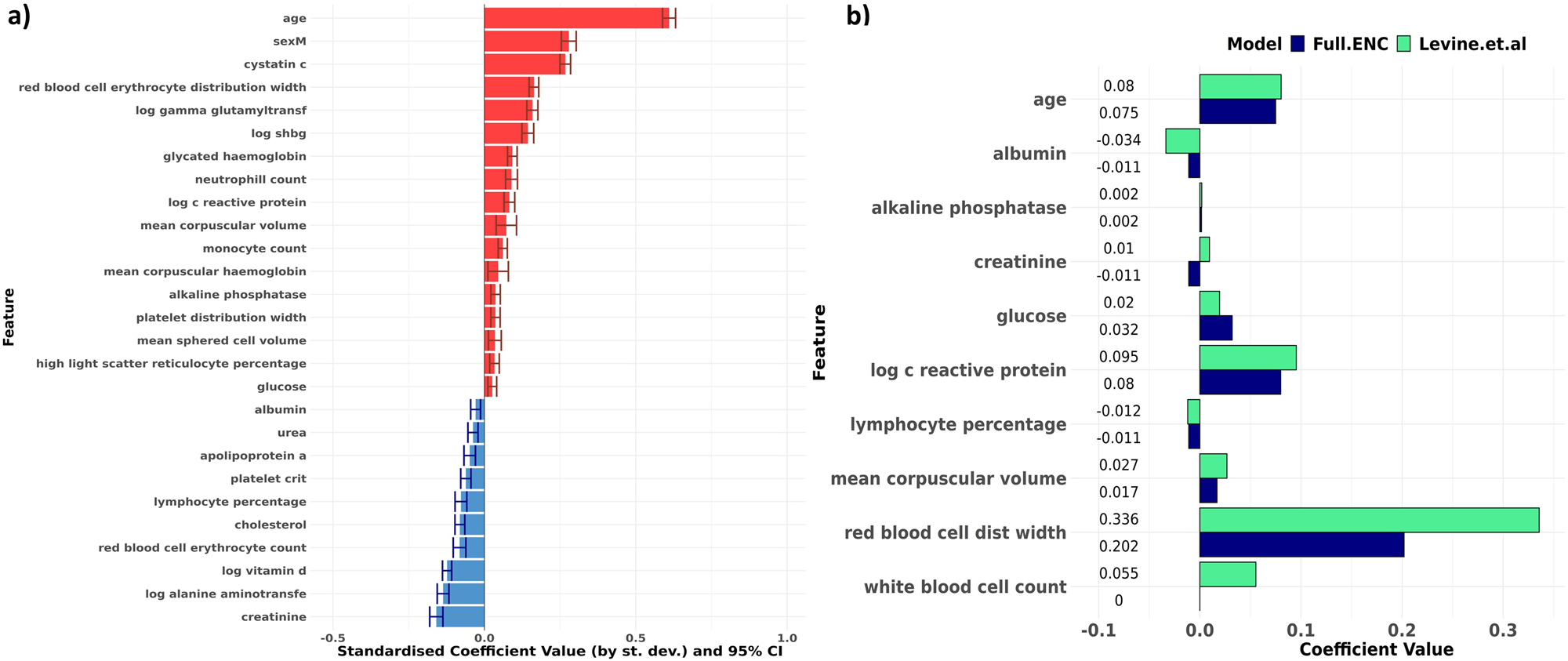

Fig. 3: Our results confirm relationships suggested by Levine et al.’s PhenoAge model, and additionally suggest that cystatin C is the biomarker of primary importance in biological age estimation.

a Bar chart showing standardised Cox model coefficients and 95% confidence intervals (log hazard scale) of the Full ENC model developed using stably selected variables, ranked in descending order. Coefficients are standardised (i.e. rescaled) by multiplying by the standard deviation of the variable concerned. Red indicates that higher levels increase mortality hazard; blue indicates that higher levels reduce mortality hazard. Apart from age and sex, cystatin C appears to have the strongest effect size. b Comparison of coefficient values between Levine et. al’s PhenoAge coefficients (green) and our Elastic-Net derived Cox model (blue). Model coefficients are similar across both models. Our ENC model selected individual WBC components (monocytes, neutrophils and lymphocytes) rather than overall WBC count. Measurement units for biomarkers were the same across both models.
