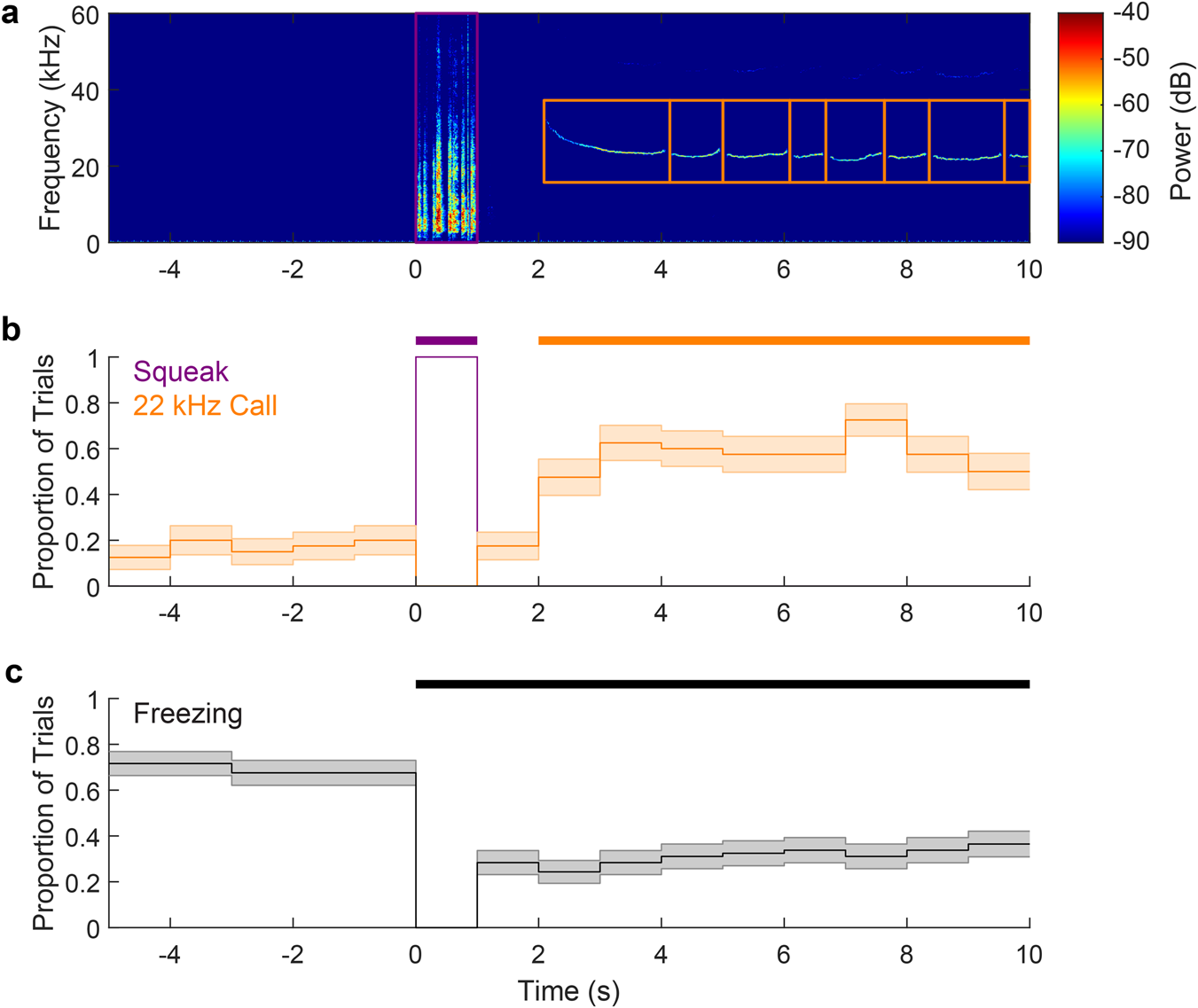

Fig. 2: Behavioral responses relative to the timing of footshocks during pre-exposure for Experiment 1.

a Exemplar spectrogram in response to the second shock an animal received during the pre-exposure session. The lilac box highlights the squeak occurring during the 1 s of shock delivery, while the orange boxes highlight eight 22 kHz vocalizations. Squeaks only occurred during shocks, whereas 22 kHz calls were absent during shocks. b Proportions of trials during which 22 kHz calls (orange) or squeaks (lilac) were produced as a function of 1 s bins from 5 s before until 10 s after the shock onset. Note that shocks start at t = 0 and last for 1 s. For each trial, if more than 0.5 s of a particular bin contained a 22 kHz call or a squeak, that bin was scored as 1, if not, scored as 0. Note that the squeaks and 22 kHz calls were only recorded from the subset of 10 animals that had a lower amplitude playback during the playback session, as we had not initially planned to analyze (and hence record) sound emissions during pre-exposure. There were four shocks for each of these 10 animals; thus, the proportions were calculated across 10 × 4 = 40 total shock trials. Given that 4 shocks are given per animal, the period from −5 to 0 s is not a true baseline, but an interval that in 3/4 of cases occurs after another shock (the inter-shock interval is either 240 or 360 s). Error bars indicate standard error of proportions (SEP) as calculated separately for each bin as SEP = (p(1−p)/n)^½, where p is the observed proportion and n is the total number of shock trials. The thick orange bar above the figure indicates significant increases in 22 kHz call emission compared to the baseline period as analyzed by comparing each of the observed proportions after shock onset to the average of the proportions observed during the 5 s baseline period via separate binomial tests (all ps < 0.005). Squeaks were observed in all shock trials for all animals during the 1 s of footshock delivery, but never outside that bin. c Same as in b, but for freezing responses. Note that freezing analysis was conducted across all 24 animals. The thick black bar above the figure indicates significant changes in freezing due to shock exposure.
