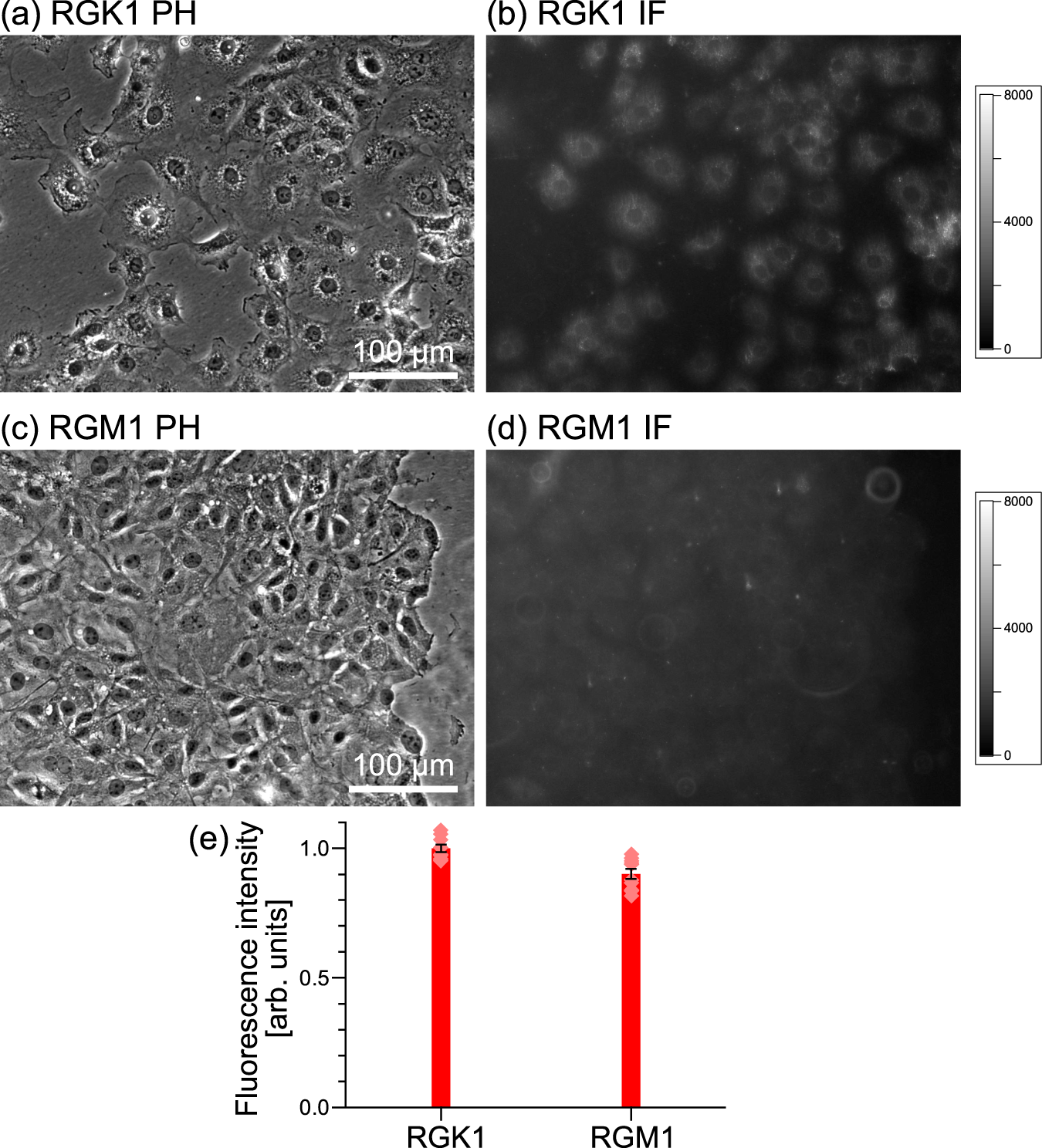

Fig. 7: Analysis of the expression level of ERdj8, a protein of the ER membrane.
From: Polphylipoprotein-induced autophagy mechanism with high performance in photodynamic therapy
a, c Phase contrast (PH) and b, d immunofluorescent (IF) staining images of RGK1 and RGM1, respectively. e Average fluorescence intensities of ten cells in b and d. The average fluorescence intensity of RGK1 is 11 % higher than that of RGM1. From this comparison, it can be inferred that RGK1 has a higher expression level of ERdj8 than RGM1, supporting the observed difference in the phagosome size.
