Fig. 7: Ratios of equilibrium rate constants between consecutive states.

From: Single-molecule visualization of human A2A adenosine receptor activation by a G protein and constitutively activating mutations

Fig. 7: Ratios of equilibrium rate constants between consecutive states.The alternative text for this image may have been generated using AI.

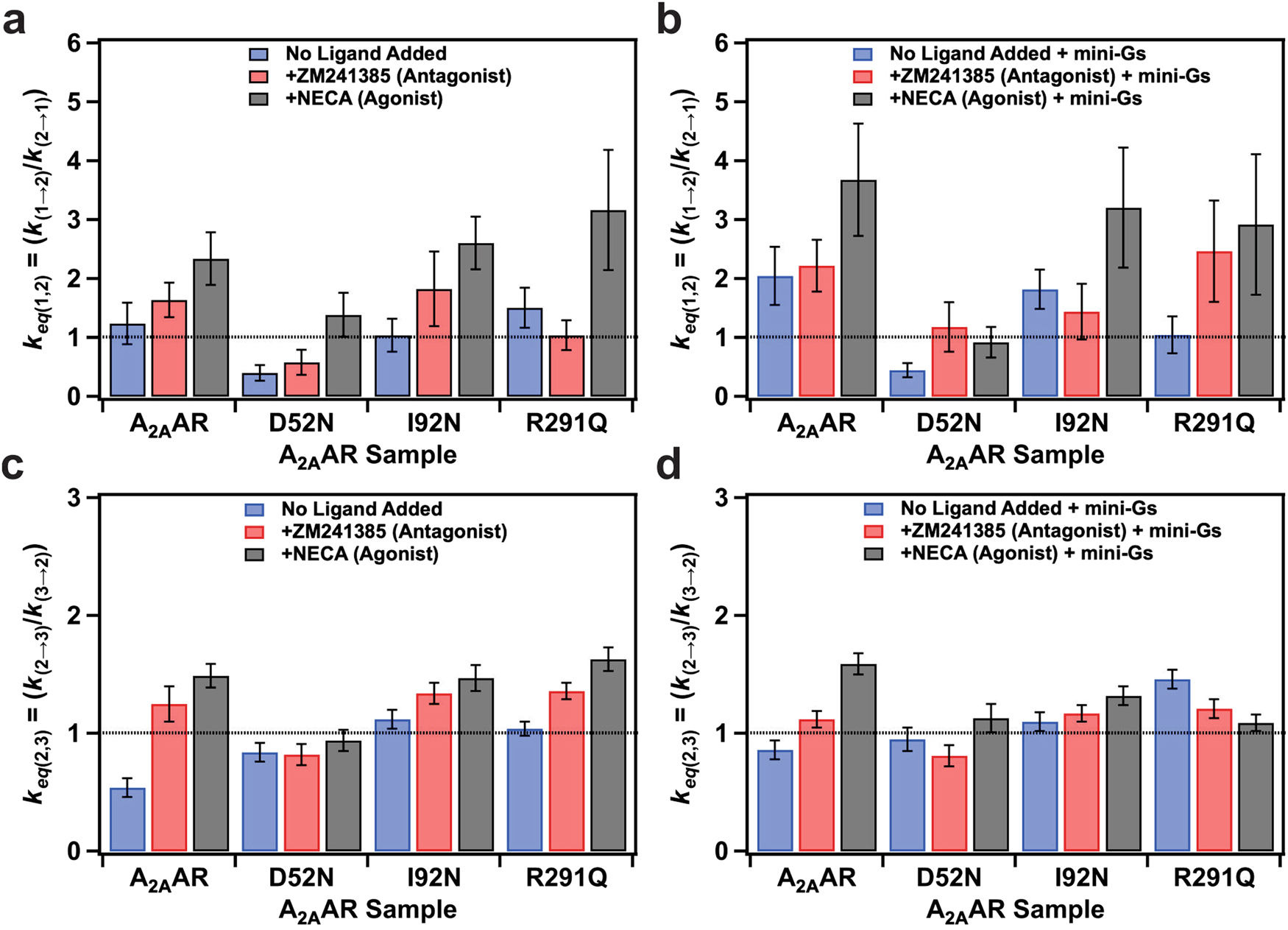

a and b Ratio of transition rate constants between states 1 and 2 for samples a without mini-GS and b with mini-GS. c and d Ratio of transition rate constants between states 2 and 3 for samples c without mini-GS and d with mini-GS. The vertical scales in panels c and d were expanded for clarity. See Supplementary Fig. 7 for a plot of panels c and d on the same scale as panels a and b. For all panels, error bars indicate the calculated standard deviation. The dotted horizontal lines indicate values of the rate constants equal to 1.
