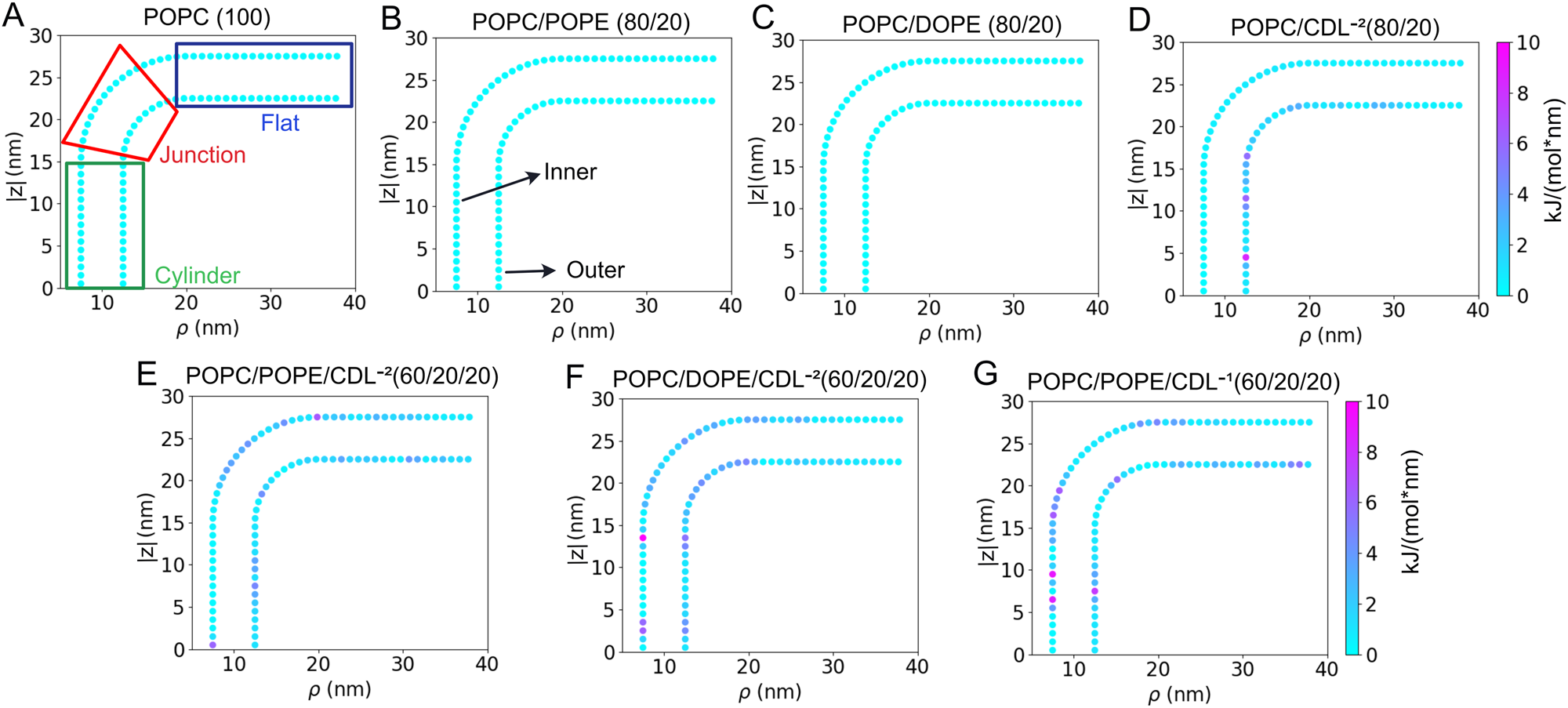

Fig. 2: Dummy particle forces on IMM systems with rcyl = 10 nm.
From: Curvature sensing lipid dynamics in a mitochondrial inner membrane model
System labels match those in Table S1. A POPC, (B) POPC/POPE, (C) POPC/DOPE, (D) POPC/CDL−2, (E) POPC/POPE/CDL−2, (F) POPC/DOPE/CDL−2, and (G) POPC/POPE/CDL−1. In (A) the mapping of the different regions is indicated by the boxed regions, and the inner and outer monolayers are labeled in (B) these labels apply to all systems. The color scaling is the same in all figures.
