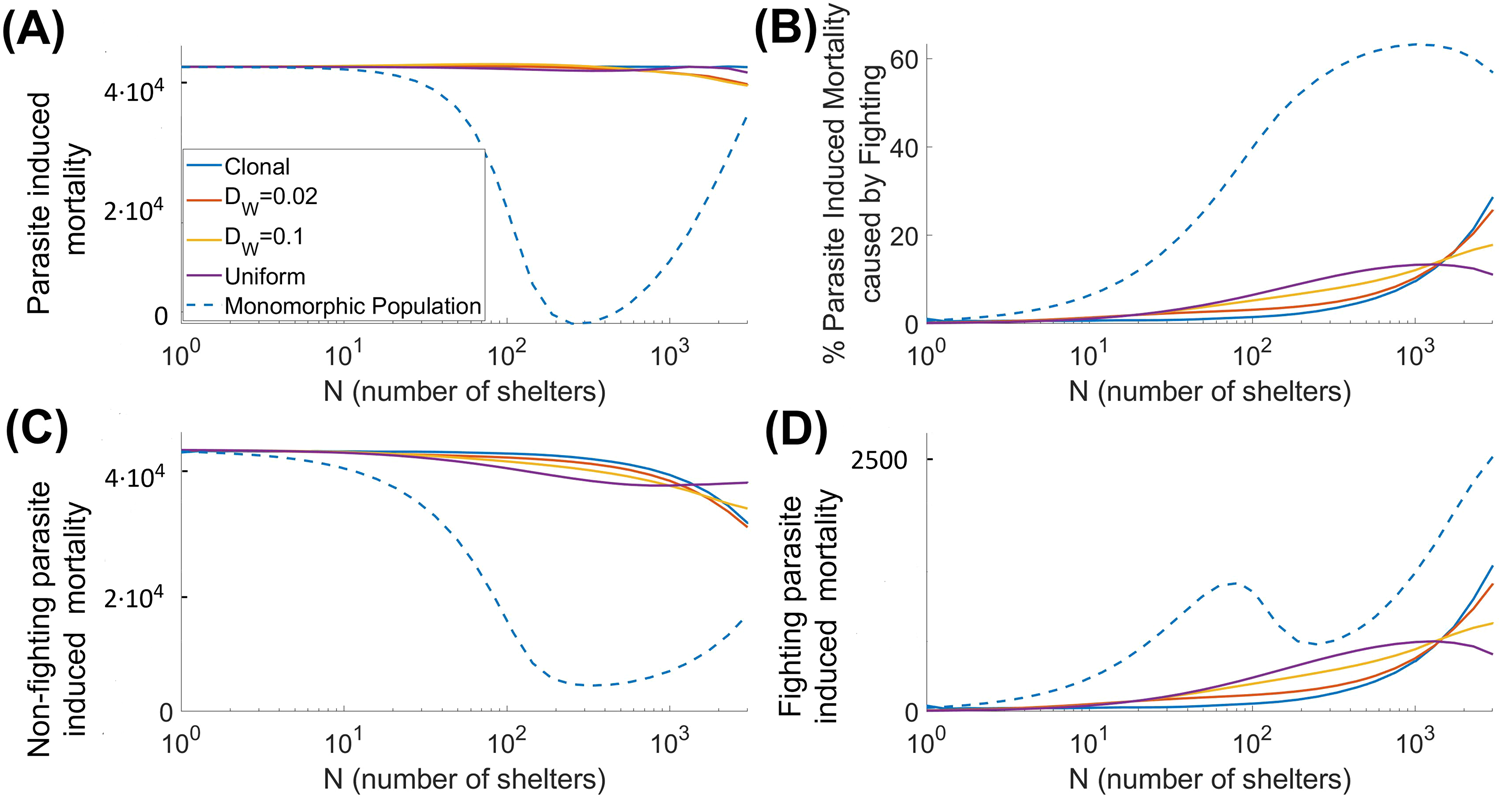

Fig. 4: Dependence of parasite-induced mortality rates on the number of shelters N, with multiple boldness strains, for varying values of Dw.

From: Revisiting the role of behavior-mediated structuring in the survival of populations in hostile environments

Fig. 4: Dependence of parasite-induced mortality rates on the number of shelters N, with multiple boldness strains, for varying values of Dw.The alternative text for this image may have been generated using AI.

The dashed curve shows the parasite-induced mortality in a single-strain population. A Total parasite-induced mortality (measured as individuals lost per year). B Relative contribution of fighting for shelters to the overall mortality; (C) and (D) present, respectively, the non-fighting and the fighting-related parasite-induced mortality rates (measured as individuals lost per year). All model parameters and settings are as described in Fig. 2.
