Fig. 4: Morphology of mitochondria.

From: A semi-automatic method for extracting mitochondrial cristae characteristics from 3D focused ion beam scanning electron microscopy data

Fig. 4

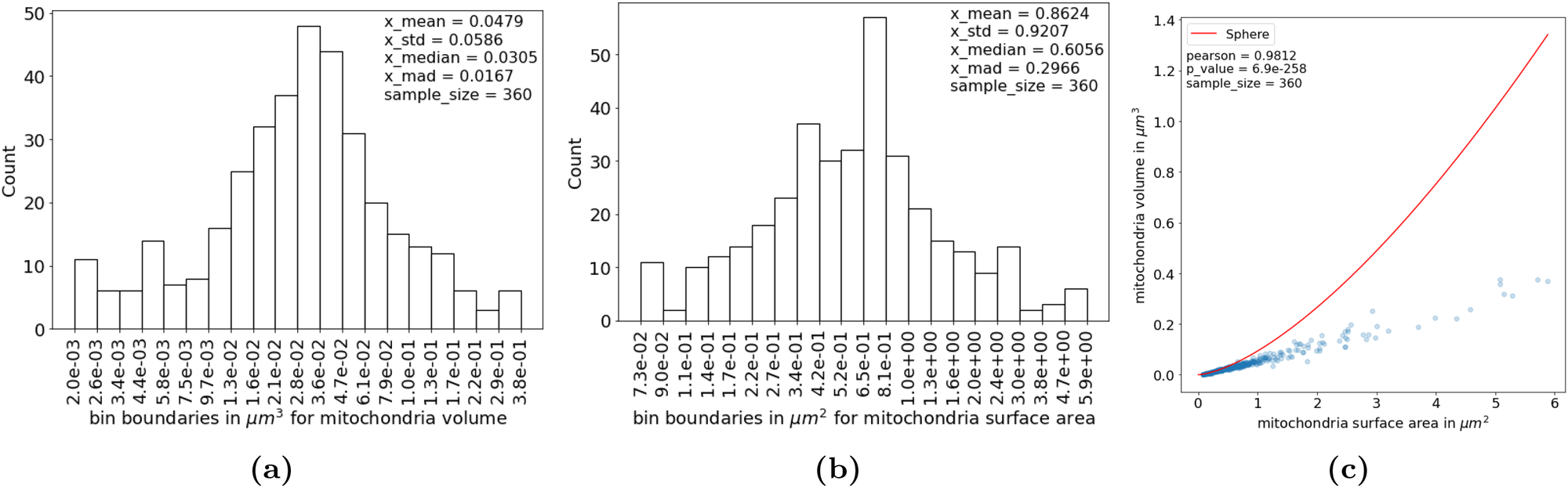

The distribution of volumes a and surface areas b of mitochondria in 3D are shown for the full dataset. Please note that the counts and bin boundaries are computed on log-transformed values. The correlation between mitochondrial surface area and volume is almost perfectly linear. The curve represents the relationship between surface area and volume for a sphere c. mad median absolute deviation, std standard deviation.
