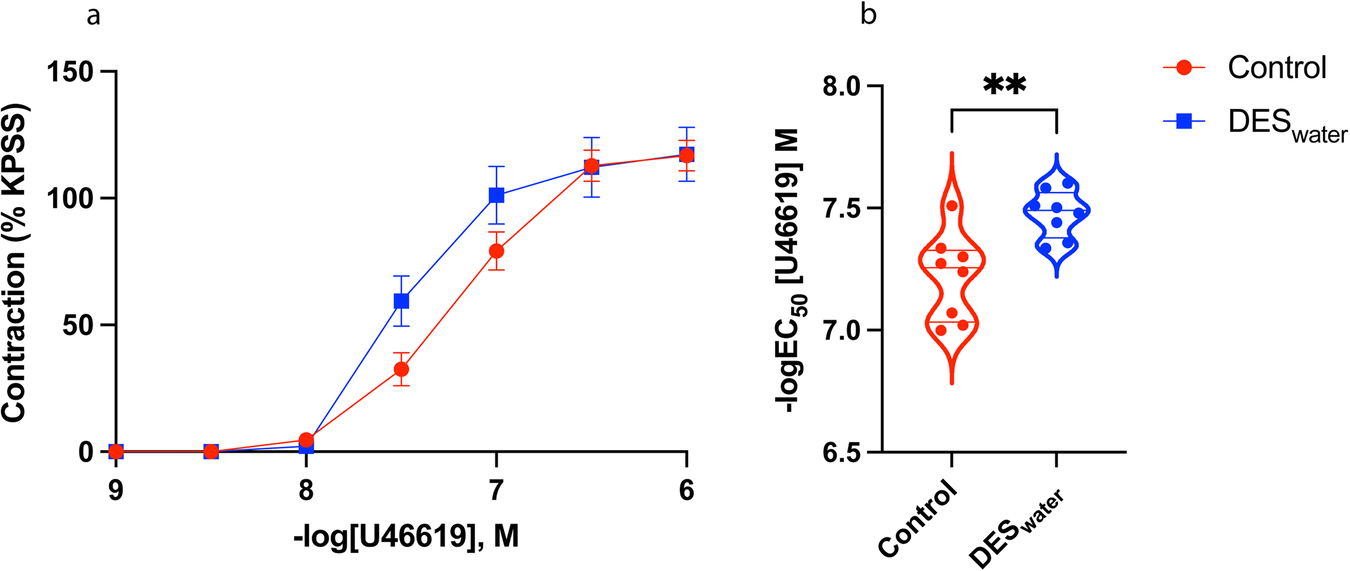

Fig. 3: U46619-mediated contraction response of the DESwater CC.
From: Estrogenic endocrine disruptor exposure directly impacts erectile function
a U46619-mediated contraction of the DESwater CC (blue) and control CC (red). Contraction measured as percentage of high potassium physiological saline solution (KPSS)-induced contraction. b Violin plot depicting significantly greater sensitivity of the DESwater CC to U46619 (−logEC50 [U46619] M; DESwater: 7.48 ± 0.03, n = 8; control: 7.22 ± 0.06, n = 8; P = 0.003; unpaired, two-tailed t-est). Data expressed as mean ± standard error of the mean (SEM), represented by error bars in (a). Significance (P < 0.05) indicated by **.
