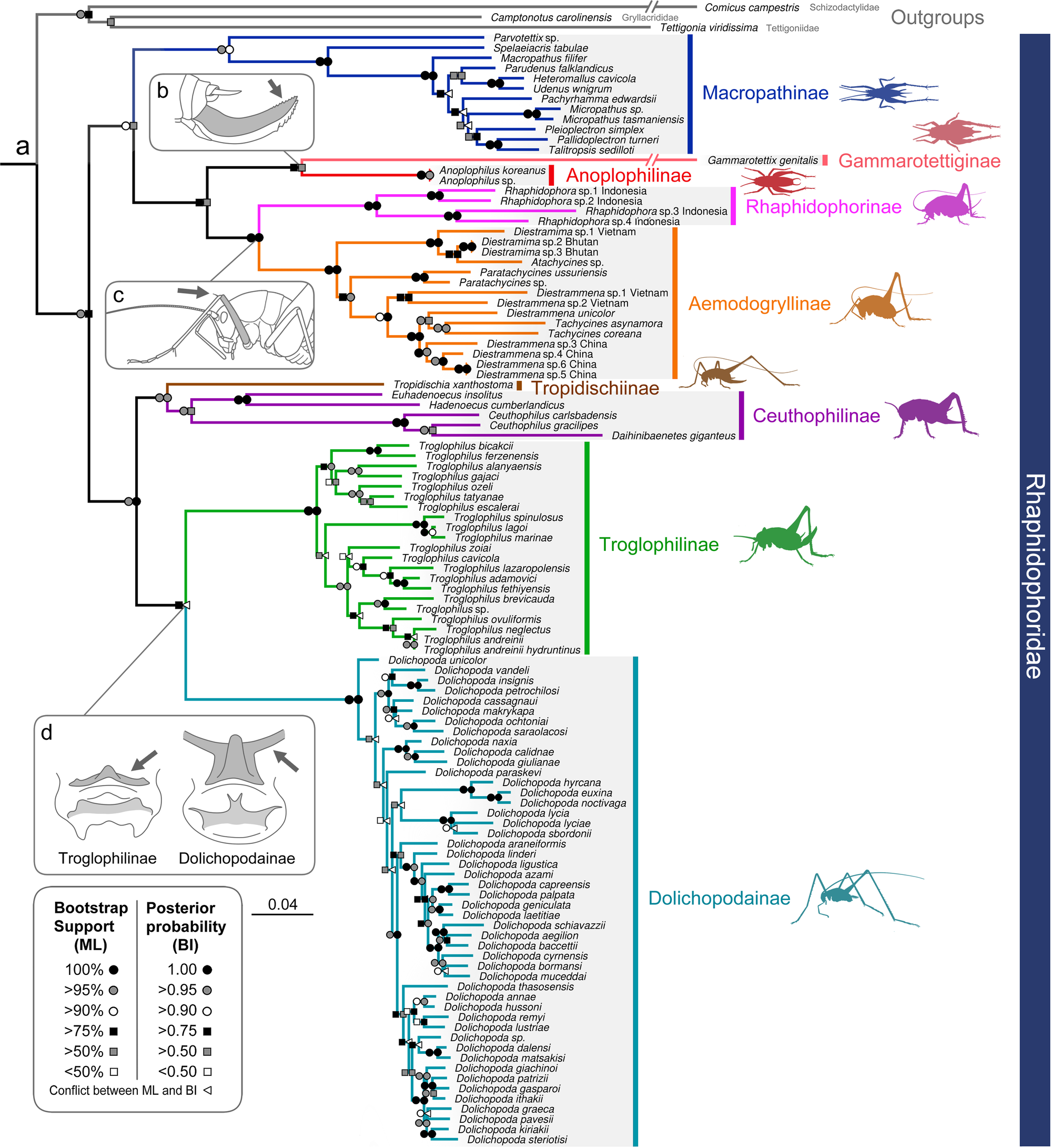

Fig. 2: Molecular phylogeny of Rhaphidophoridae within the all extant subfamily and morphological synapomorphies supporting relationships.
From: Phylogeny and biogeography of the wingless orthopteran family Rhaphidophoridae
a The combined result of the phylogenetic analyses using 112 taxa and partitioned five multi-locus: the mitochondrial COI, 12 S rDNA, 16 S rDNA and the nuclear 18 S rDNA, 28 S rDNA. The topology is based on Maximum likelihood tree using IQ-tree with 2,000 bootstrap replications, and the bootstrap supporting values are indicated on the left of nodes. The result of Bayesian Inference using MrBayes are indicated by the posterior probabilities for nodal support values on the right of nodes. Topological differences between ML and BI trees are indicated by triangle marks on right of nodes. b–d Synapomorphy between the subfamilies is highlighted in grey, with significant anatomical structures pointed with arrows. b Denticles on upper valve of ovipositor. c An inner apical spine on fore femora. d Transversed epiphallic sclerite in male genitalia.
