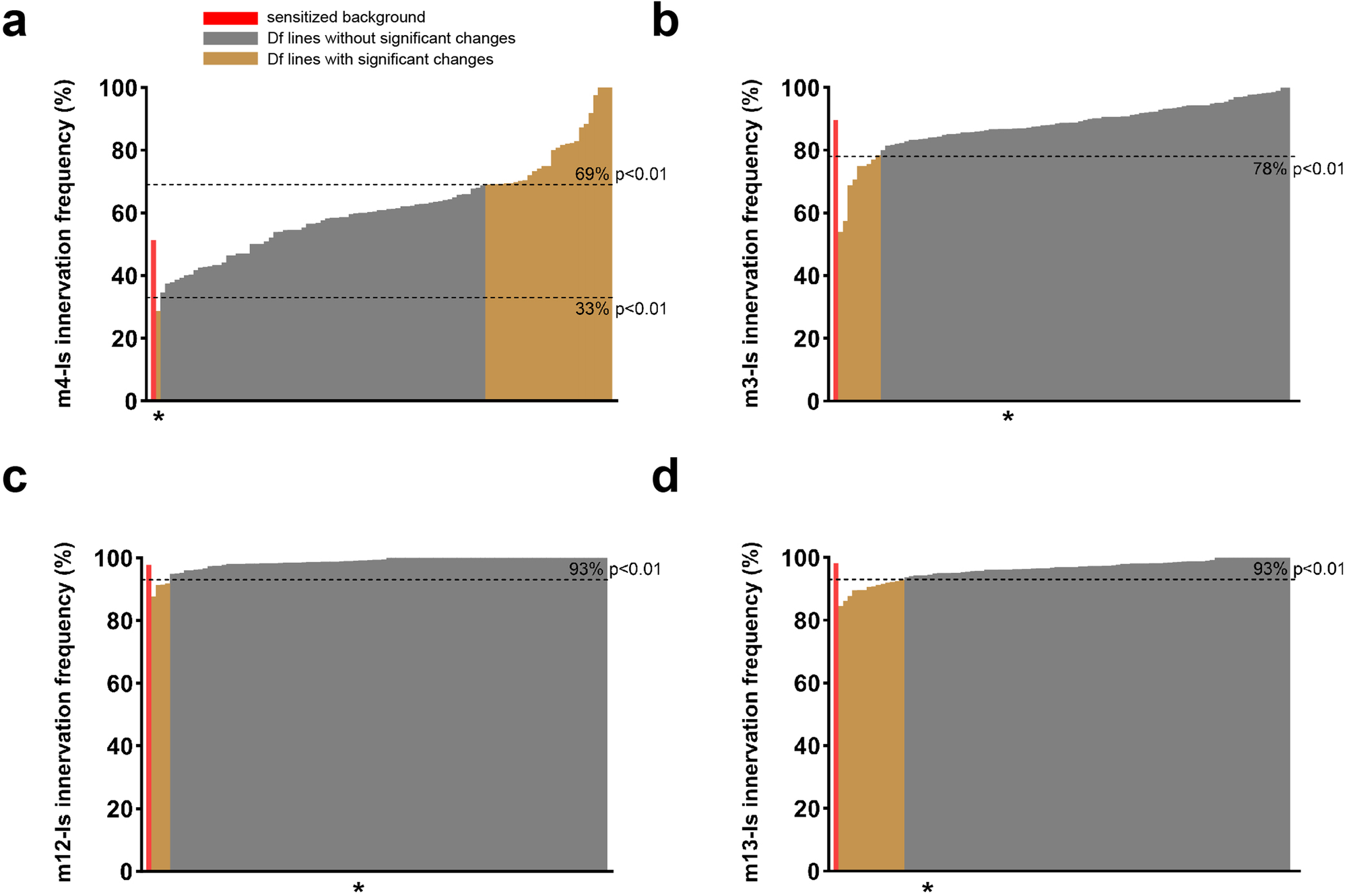

Fig. 2: Deficiency screen revealed candidate regions that cover genetic interactors of DIP-α or dpr10.
From: hkb is required for DIP-α expression and target recognition in the Drosophila neuromuscular circuit
Is innervation frequency on (a) m4, (b) m3, (c) m12 and (d) m13. The red column indicates the control innervation frequency from the sensitized background (trans-heterozygotes of DIP-α and dpr10). Gray columns are non-significant from control whereas the yellow columns are the deficiency lines that show significantly different innervation frequencies compared to control. The cut-off p values are indicated by dashed lines. Asterisk indicates ED5100.
