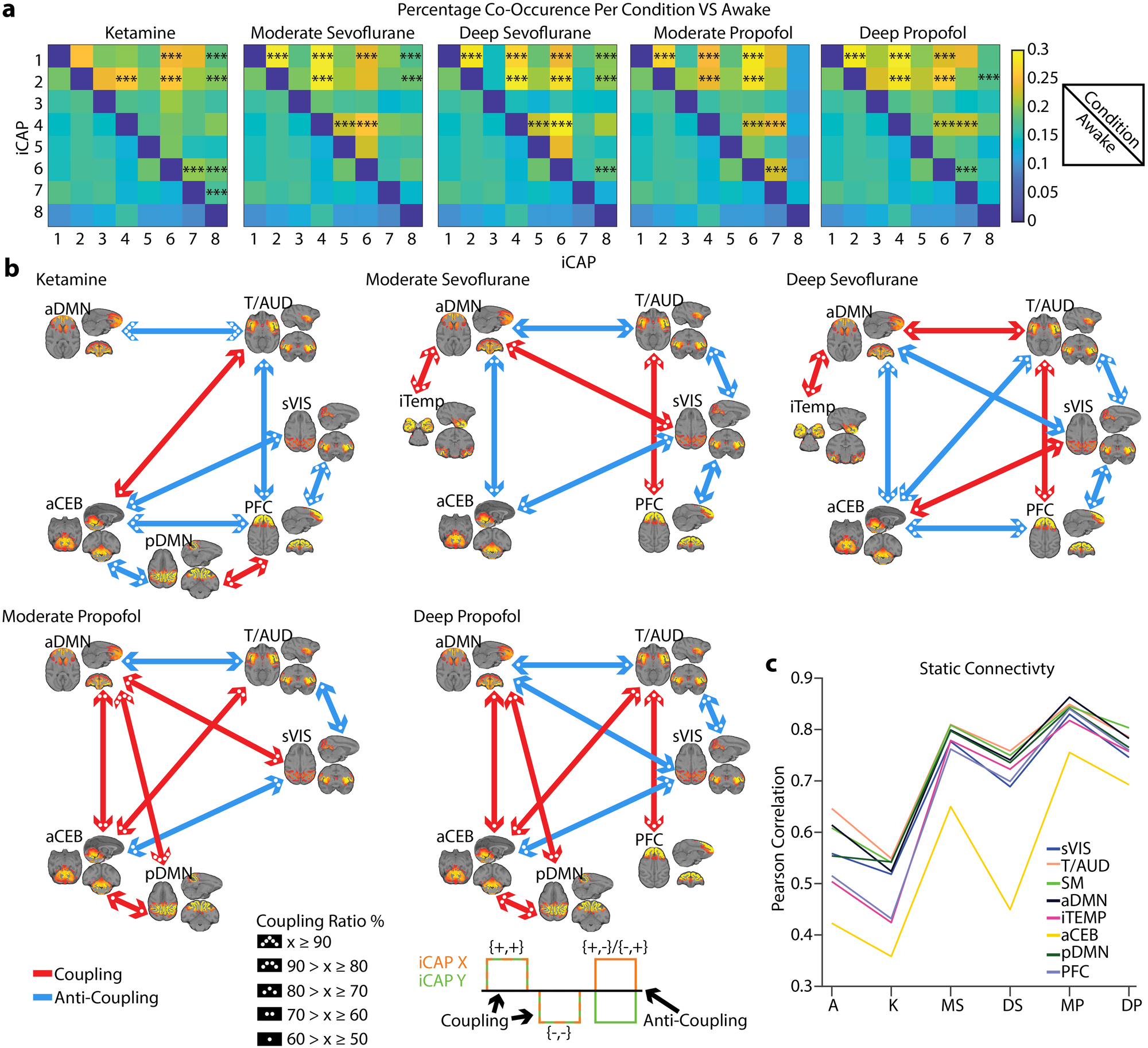

Fig. 5: Pairwise coupling between iCAPs across different conditions compared to awake.
From: Transient brain activity dynamics discriminate levels of consciousness during anesthesia
a The co-occurrence pertains to the number of times in a pair of iCAPs both iCAPs were active, divided by the total number of time points where at least one of them was active. Top right of each square is the anesthetic condition and the bottom left of each square is the awake condition. Inference on the mean differences is performed by bootstrapping, with n = 10,000 bootstrap samples; *** indicates statistical significance of p < 0.001 adjusted with Bonferroni correction. b Significant total co-occurrences are broken down into coupling and anti-coupling. Co-occurences dominated by coupling or anti-coupling are indicated in red and blue, respectively, and the ratio between coupling and anti-coupling is indicated by the number of dots in each arrow head. c Mean of pairwise Pearson correlation applied to the iCAP time courses. Each color indicates a different iCAP.
