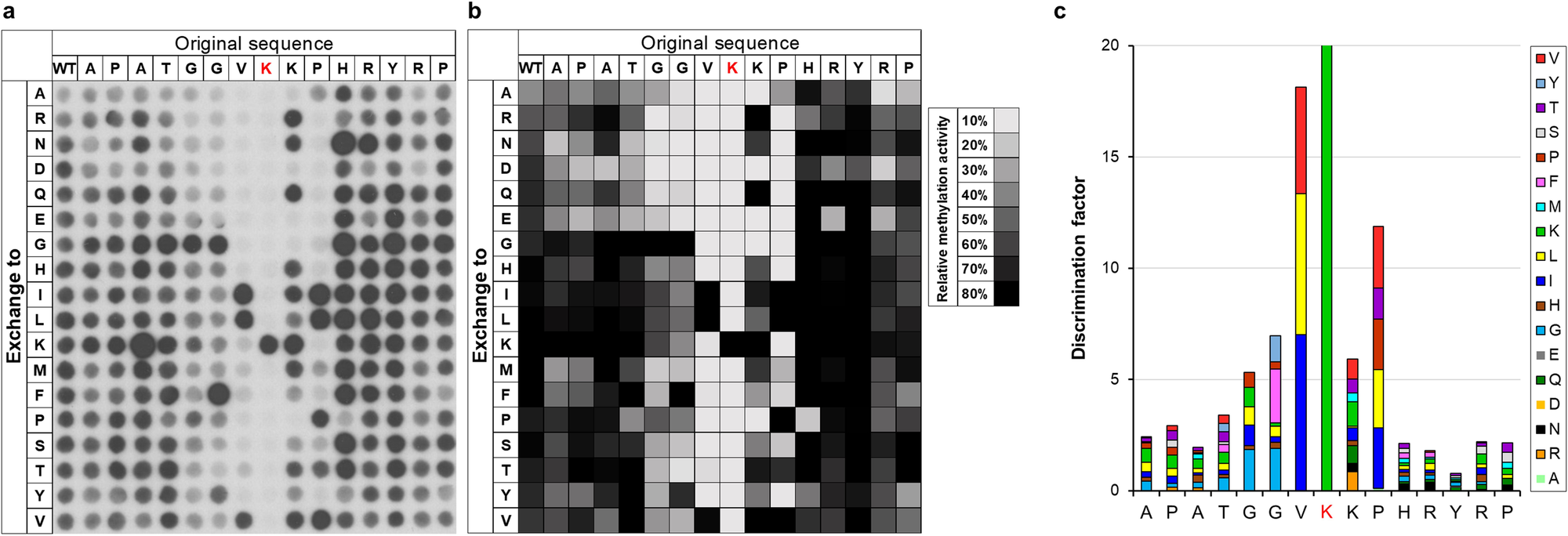

Fig. 1: Substrate specificity analysis of NSD2.
From: Discovery of NSD2 non-histone substrates and design of a super-substrate
