Fig. 5: Core genome multi-locus sequence typing (cgMLST) analysis of K. pneumoniae strains.

From: Prevalence of ST1049-KL5 carbapenem-resistant Klebsiella pneumoniae with a blaKPC-2 and blaNDM-1 co-carrying hypertransmissible IncM1 plasmid

Fig. 5

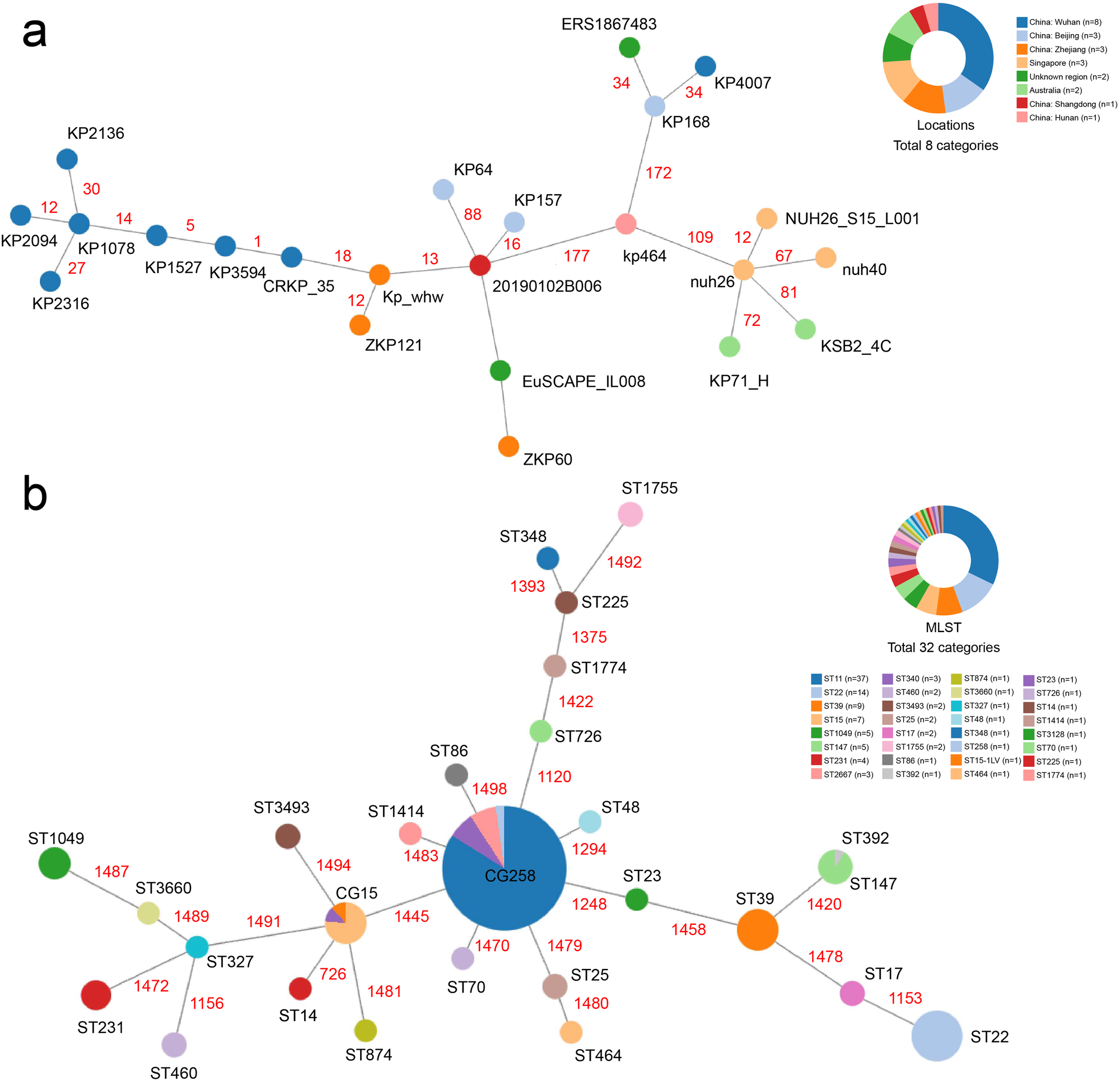

a Distribution of ST1049 K. pneumoniae strains differentiated by locations. b Distribution of KPC_NDM_CKKP strains differentiated by MLST sequence types. The minimum-spanning tree was constructed with the collapsed distance set at 395. Absolute distance is indicated in red font.
