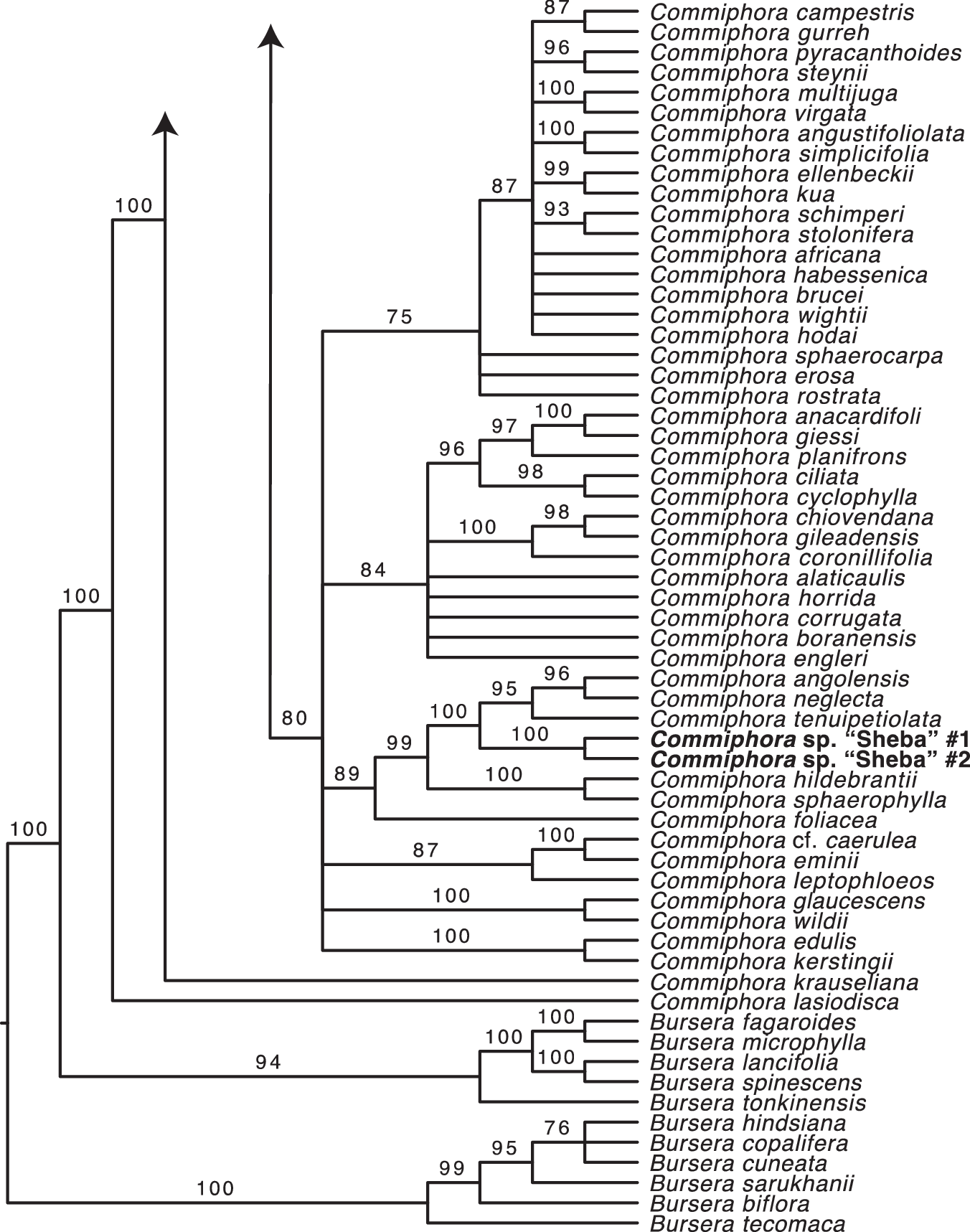

Fig. 6: Placement of “Sheba” within Commiphora species phylogeny; arrows lead to 59 other Commiphora species within the remaining topology. | Communications Biology

Fig. 6: Placement of “Sheba” within Commiphora species phylogeny; arrows lead to 59 other Commiphora species within the remaining topology.

From: Characterization and analysis of a Commiphora species germinated from an ancient seed suggests a possible connection to a species mentioned in the Bible

Fig. 6

“Sheba” is nested within the “Spinescens” clade, which encompasses C. campestris through C. kerstingii. Tree topology is a 75% majority rule consensus cladogram of 1000 ultrafast bootstrap replicate trees from maximum likelihood analysis of nuclear and chloroplast DNA sequence data. “Sheba” 1 and “Sheba” 2 were obtained from separate DNA extraction.
