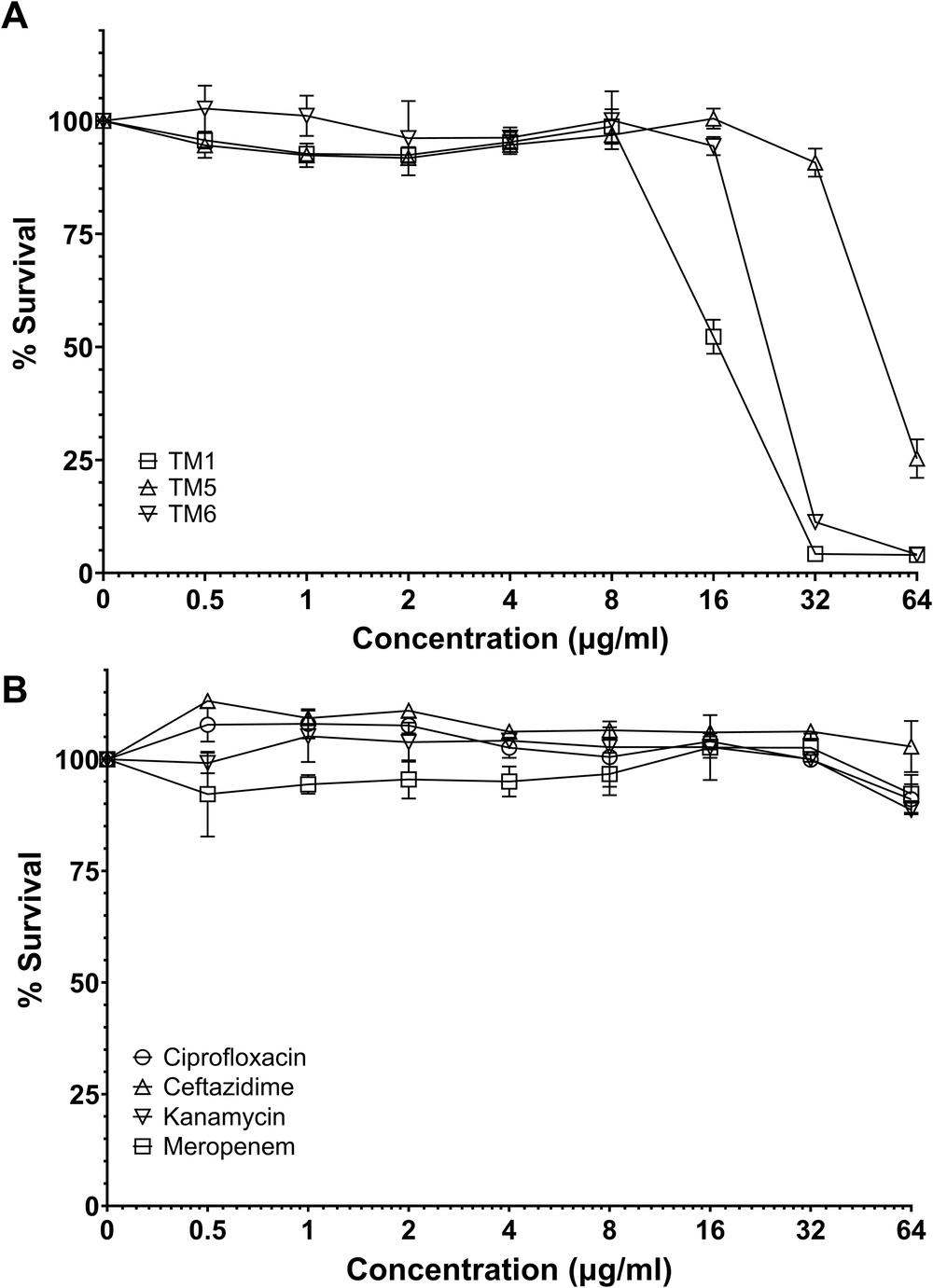

Fig. 5: Cytotoxicity of Peptoids TM1, TM5, and TM6 on mammalian cells.
From: Peptide-mimetic treatment of Pseudomonas aeruginosa in a mouse model of respiratory infection
An Alamar Blue assay was used to determine the effects of 24 h treatment with 2-fold dilutions of each peptoid (A) or standard frontline antibiotic (B) on the viability of A549 human lung epithelial cells. All concentrations and conditions were tested in triplicate, with error is shown as standard deviation.
