Fig. 3: Phylogenetic analysis of vertebrate-associated viruses.

From: Metagenomic analysis reveals high diversity of gut viromes in yaks (Bos grunniens) from the Qinghai-Tibet Plateau

Fig. 3

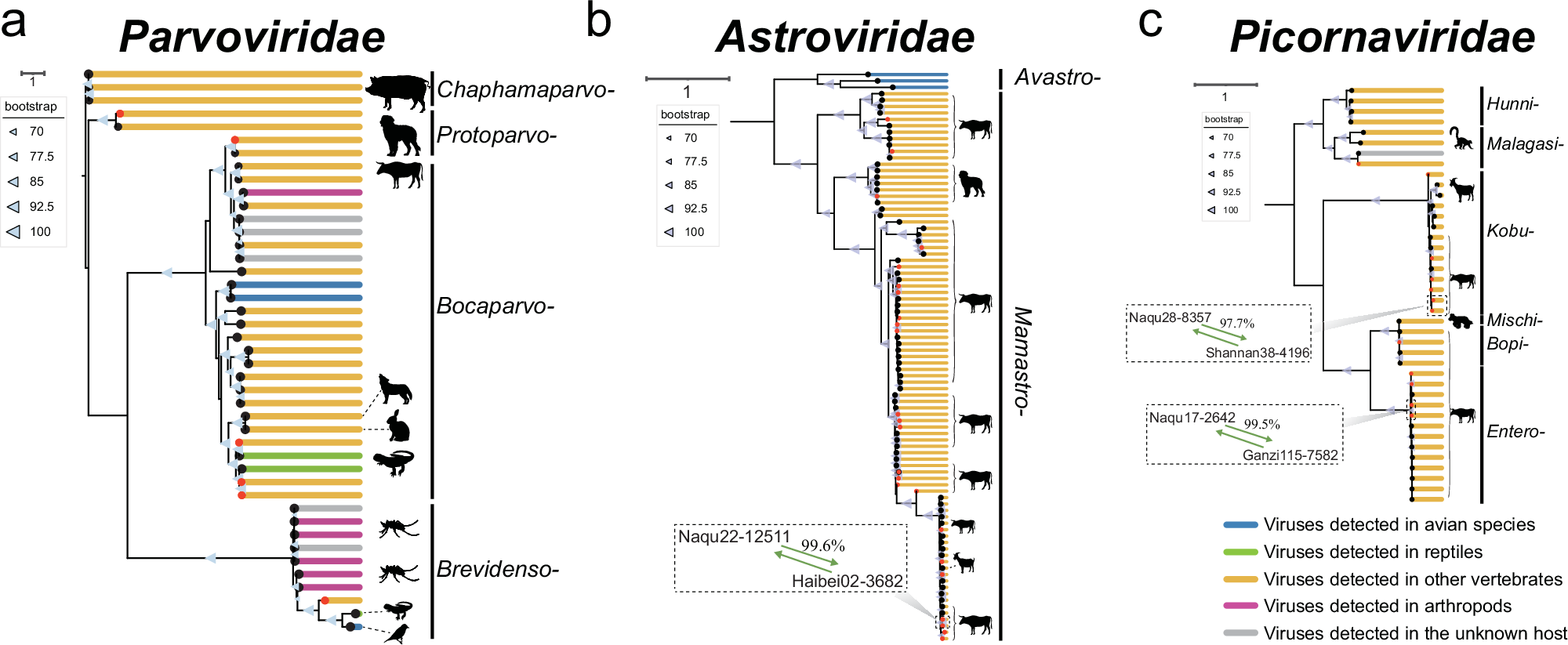

The maximum likelihood trees were constructed using the NS1 proteins of Parvoviridae (a) and the RdRp proteins of Astroviridae (b) and Picornaviridae (c), respectively. The red dots at the tips of the clades represent the viruses identified in this study. Lines of different colors represent the hosts of viruses, as detailed in the legend at the bottom right corner. All animal and other life form silhouettes are sourced from PhyloPic (https://www.phylopic.org) and are available for reuse under Creative Commons licenses.
