Fig. 2: iModulon activity changes by Cys supplementation.
From: CyuR is a dual regulator for L-cysteine dependent antimicrobial resistance in Escherichia coli

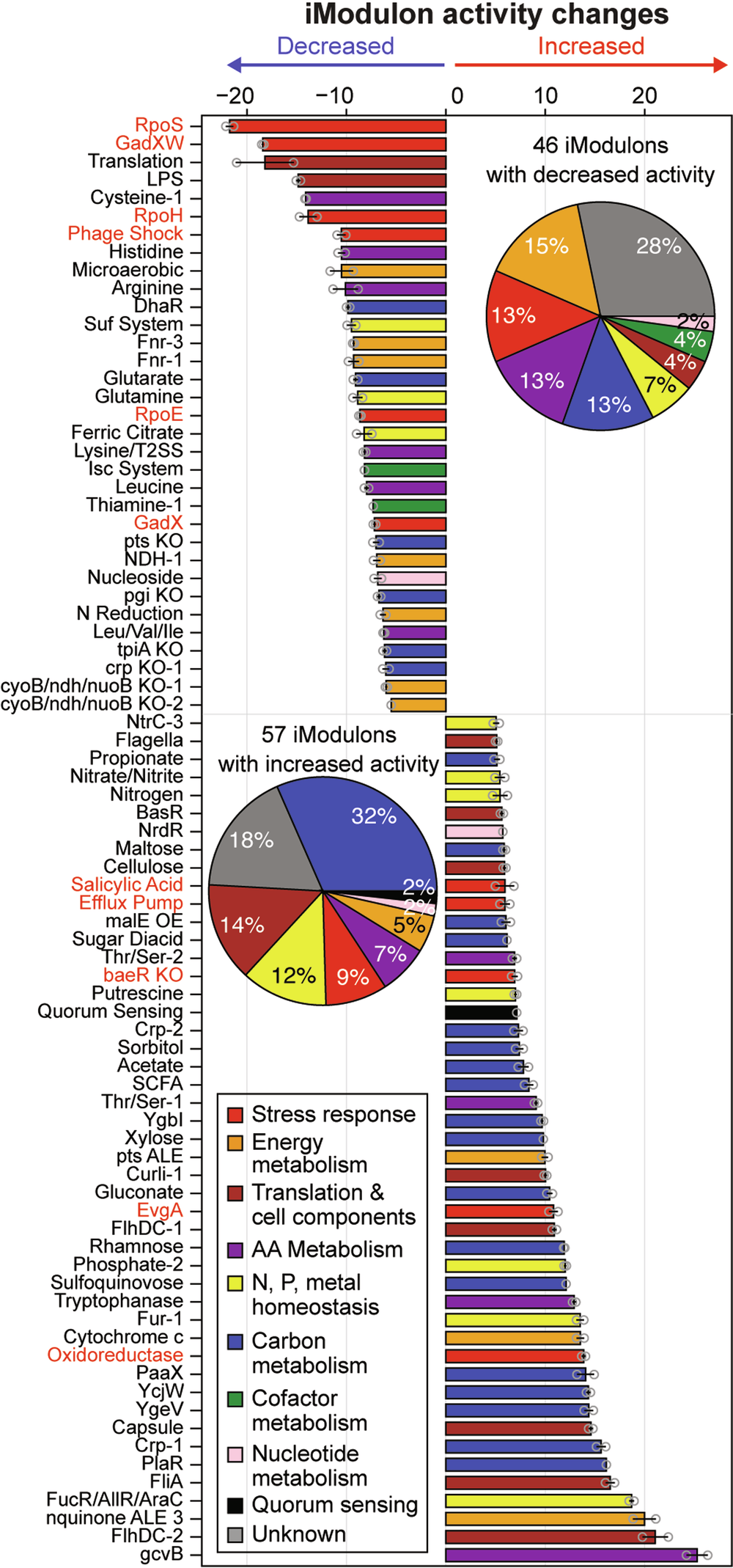

Inferred iModulon activity changes by 5 mM Cys supplementation. The names of stress-related iModulons are colored in red. The two inset pie charts show the number of functions for iModulons with changed activities. ‘Other’ iModulons were not shown in the bar graph. A full list of iModulons and activities are in Table S6. The iModulon activities were inferred from gene expression profiles of two biological duplicates and data points indicate the two values. Bar colors: red, stress response; orange, energy metabolism; brown, translation & cell components; purple, amino acid (AA) metabolism; yellow, N, P, metal homeostasis; blue, carbon metabolism; green cofactor metabolism; pink, nucleotide metabolism; black, quorum sensing; grey, unknown.
