Fig. 6: Phenotype microarray data for BW25113, BW25113 ΔmdlA, and BW25113 ΔmdlB in the presence of three different concentrations of cefazolin and vancomycin.
From: CyuR is a dual regulator for L-cysteine dependent antimicrobial resistance in Escherichia coli

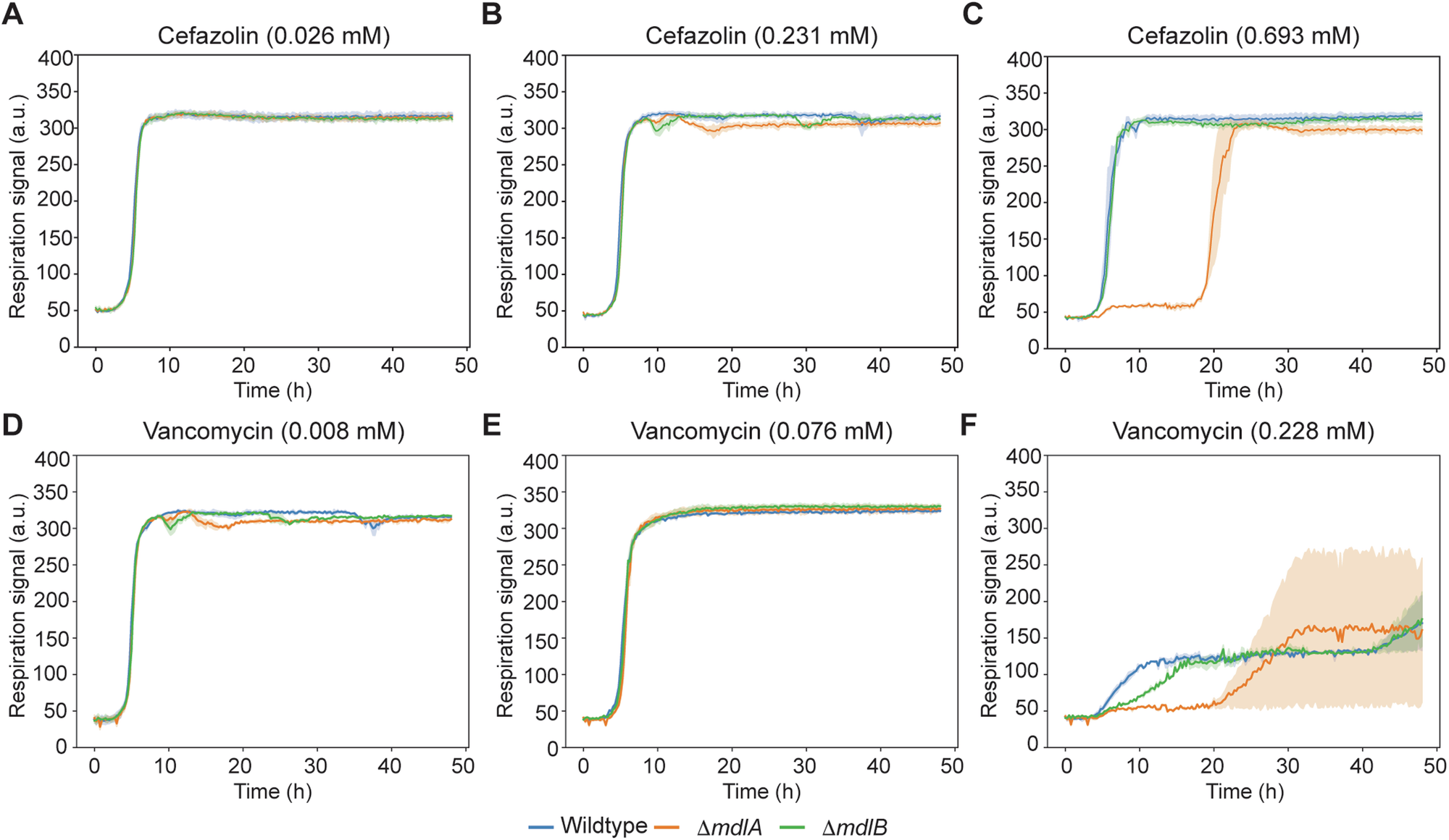

A–F Time-course signals of BW25113 (wildtype, blue line), BW25113 ΔmdlA (orange line), and BW25113 ΔmdlB (green line) grown in a Biolog plate at three different concentrations of A–C cefazolin and D–F vancomycin. x-axis and y-axis indicate time (h) and respiration signal (a.u.), respectively. The shadow indicates the respiration signals of the two biological replicates.
