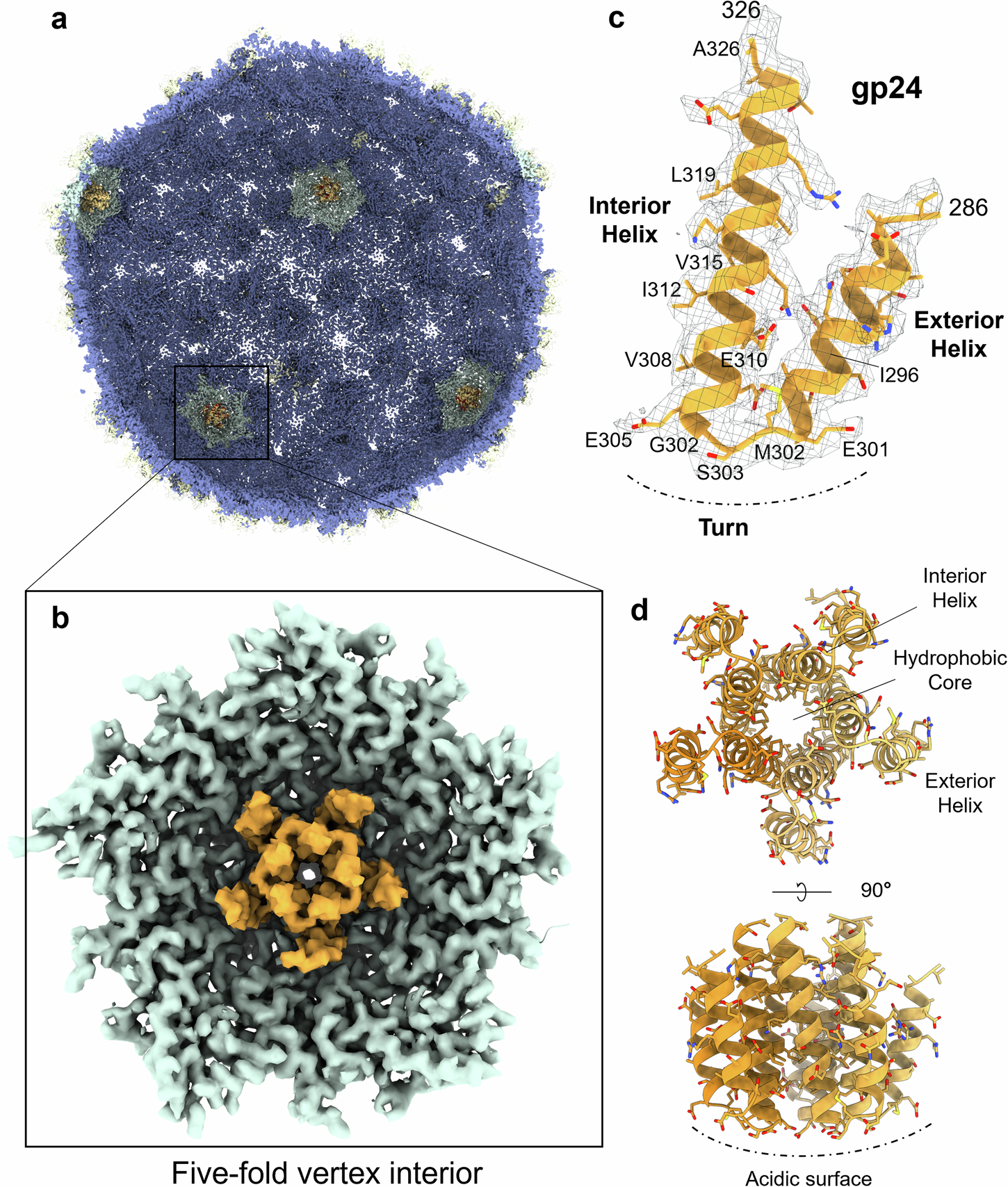

Fig. 4: Identification of Pa193 putative scaffolding protein gp24.
From: Cryo-EM analysis of Pseudomonas phage Pa193 structural components
a Cross-section view of Pa193 capsid map (I4 symmetry). b magnified view of a five-fold vertex visualized from the capsid interior, highlighting the helix-turn-helix density visible at the five-fold vertex (colored orange). c Magnified view of the putative scaffolding protein density calculated at 3.5 Å resolution and displayed at 1.5 σ, overlaid to the ModelAngelo29 model. d Cartoon representation of the gp24 pentamer.
