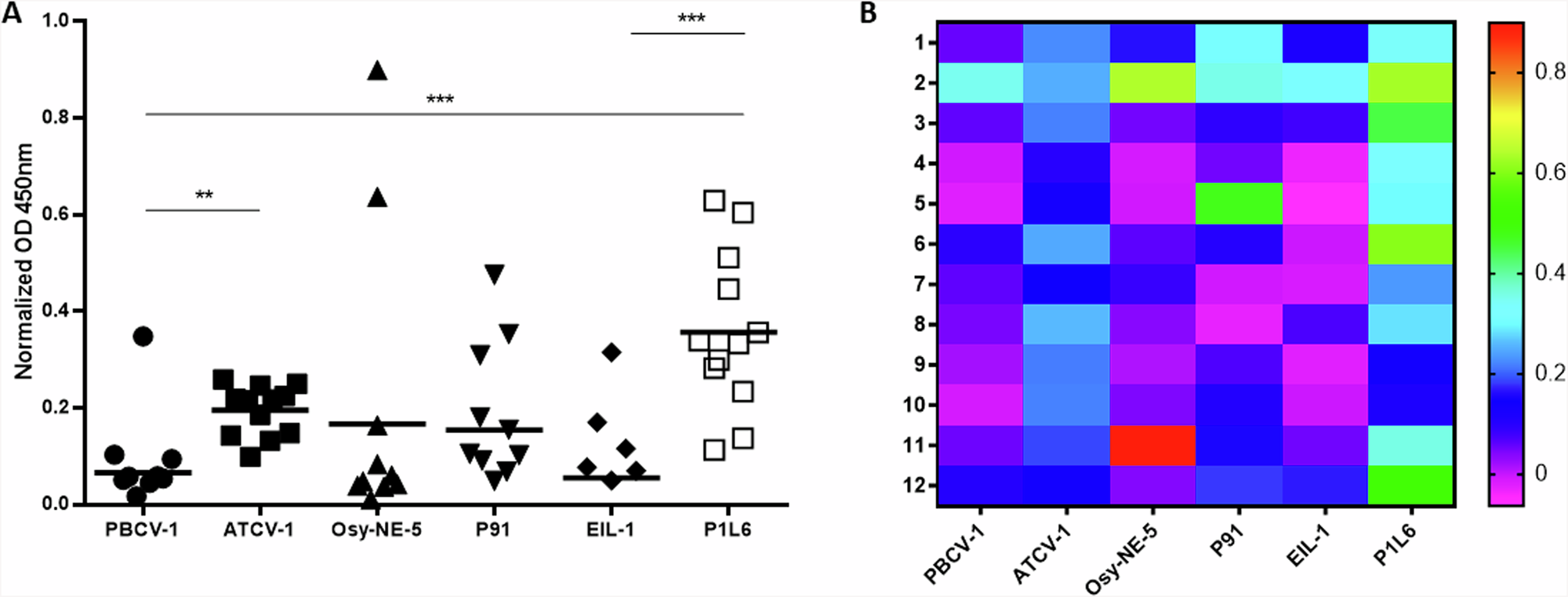

Fig. 5: Healthy donors (n = 12) IgG binding to the viral glycoproteins.
From: Carbohydrate-mediated interactions between chloroviruses and the immune system
A IgG ELISA results: wells were coated with viral glycoproteins and human IgG was specifically detected. Single OD normalized values are reported from 12 different donors, as well as the mean value from each group. Data were normalized over signal from BSA-coated wells. B Heat map from the IgG ELISA results. OD: Optical density. Experimental data were analysed by ANOVA multiple comparison (Tukey’s multiple comparison test), with a statistical significance level of alpha=0.05. Significance was defined as *p < 0.05, **p < 0.01, and ***p < 0.001.
